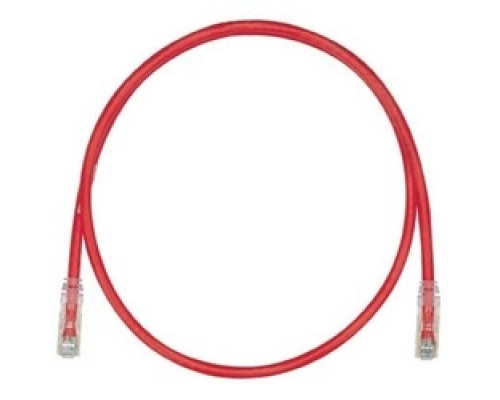

PANDUIT UTPSP5RDY Cu Patch Cord Cat 6 RD UTP Cable 5ft EA

Applications

1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) 2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM 3) Token ring 4/16 4) Dig ital video and broadband/baseband analog video 5) Voice over Internet Protocol (VoIP)

Features

• 100% performance tested for wire map, NEXT and return loss: Confidence that each patch cord delivers specified performance
• Centered de-embedded plug: Performs in center of ANSI/TIA-568-C.2 component range, ensuring interoperability and optimum performa nce
• Integral pair manager: Optimizes performance and consistency by reducing untwist at plug
• Patented tangle-free latch: Prevents snags and provides easy release, saving time on frequent moves, adds and changes
• Slender strain relief boot: Provides eas access in high-density applications
• Flexible stranded cable: U/UTP stranded 24 AWG copper cable with a nominal diameter of 0.235 inch allows for high density installations and superior panel cable management
• Identification: Provides identification of performance level, length, and quality control number for future traceability
• Variety of cable colors: Meets individual length and color-coding requirements and lengths for greater system flexibility
• Robust construction: Rated to 2500 mating cycles
• Keed version available: Color-specific keys with positive and negative keying features mechanically and visually distinguish connections to prevent unintentional mating with unlike keyed or non-keyed jack modules, offering network design flexibility, ver satility accommodating discrete networks for enhanced security
• Color bands (optional): Snap onto cable, allowing additional color-coding options
• RJ45 plug lock-in device (optional): Secures plug into jack to prevent unauthorized removal of patch cord

Tech Info

Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E channel and component standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4 ; RoHS Compliant
