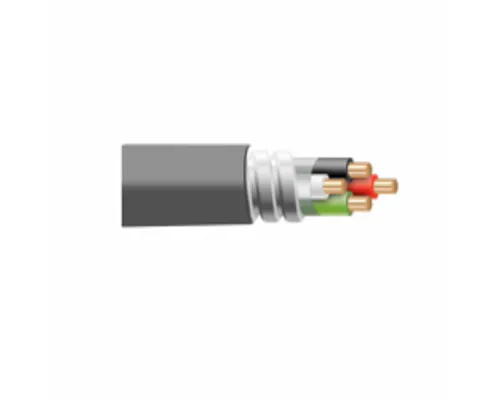

8-3C Metal Clad (MC) Aluminum Armored, Stranded Copper Conductors with Ground, PVC Jacket.
***For Custom Lengths Please Call 855-880-8010***
Applications:
Jacketed MC Cable is suitable for use in branch, feeder and distribution circuits in commercial, industrial, institutional and multi-residential applications. The cable is approved for power, lighting, control and signal circuits. Suitable for use in cable tray and other approved raceways and can be exposed or concealed. The cable can be used in places of assembly of 100 people or more, such as studios and theaters. Voltage ratings should not exceed 600V in any application.
Conductor:
Stranded Copper
Insulation:
Polyvinyl chloride (PVC) / nylon over coated type THHN/THWN insulation
Ground:
Soft drawn bare copper, insulated with green PVC/nylon
Armor:
Aluminum interlocked tape armor
Jacket:
An overall sunlight, oil, fire and abrasion resistant polyvinyl chloride (PVC) jacket. Temperature rating is 90°C dry/75°C wet.
Standards:
- UL standards 68, 1479, 1569, 1581 & 2556
- UL listed for cable tray use
- UL listed for direct burial in earth or concrete
- IEEE 1202 vertical flame test, 70,000 BTU/hr.
- ASTM B3, B8
- NFPA 70
- NEC Articles 300-22©, 518.4, 520.5, 545.4 & 645
- Federal Specification A-A59544
- Class I Div. 2, Class II Div. 2 and Class III Div. 1 Div. 2 for hazardous locations
Specifications:
Size: 8 AWG
Armor Outside Diameter: 0.712 inches
Jacket Outside Diameter: 0.812 inches
Approx. Weight per 1000 ft: 380 lbs.
