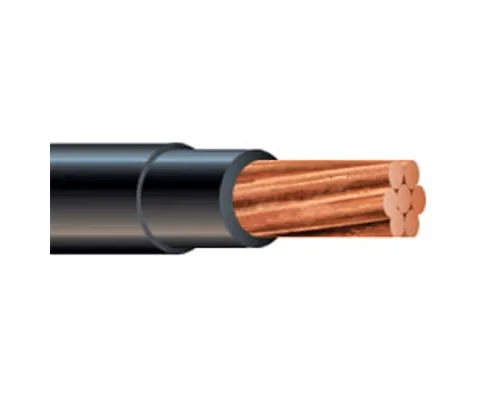

#3 THHN/THWN-2 Wire
Cut to length - sold by the foot. Enter desired footage in QTY box.
Minimum 1' maximum 5000'. Please call for longer put ups.
Applications:
Type building wire is intended general purpose applications as defined National Electrical Code (NEC). Type THHN-THWN-2 permitted new construction or rewiring 600-volt applications. requiring THHN THWN-2, conductor appropriate use wet dry locations at temperatures not exceed 90ºC 75ºC oil coolants. MTW 90ºC, 60ºC where exposed oils AWM 105ºC locations.
Also Known As:
Copper wire, THWN, hook up conduit bathtub lighting nylon copper cable, etc...
Features:
Nylon outer jacket easy pulling. VW-1 rated 14 AWG 8 AWG. All sizes are gasoline and oil-resistant II.
Jacket:
A tough, polyamide, covering per UL-1063 UL-83.
Standards:
Underwriters Laboratories Standards UL-83, UL-1063, UL-758
AWM Spec 1316, 1317, 1318, 1319, 1320, 1321
ASTM Stranding Class B3, B8, B787
Federal Specification A-A-59544
Canadian Association C22.2 No. 75
NEMA WC70/ICEA S-95-658
Institute of Electronics Engineers
Construction:
Conductors:
Solid, uncoated conductors ASTM-B3
Stranded, ASTM-B3, ASTM-B787 ASTM-B8
Insulation:
Color-coded Polyvinyl Chloride (PVC), heat moisture-resistant, flame-retardant compound UL-8
3 Specifications*:
| Size: | 3 AWG |
| Number Strands: | 19 |
| Cross Section Area: | 26.7 mm2 |
| PVC Insulation Thickness (Conductor): | 1.020 mm / 0.040 inches |
| Nylon Thickness: | 0.150 0.006 inches |
| Outside Diameter: | 8.74 0.344 inches |
| Weight: | 0.202 lbs ft |
| Allowable Ampacity: | 85 Amps 100 110 90ºC |
*Data provided on this page subject change based different manufacturers variances.
