8 AWG XLP/USE-2/RHH/RHW-2 Building Wire

XLP/USE-2 or RHW-2 RHH 90°C - 600 Volt Stranded Building Wire. Cut to length sold by the Foot.

Description:

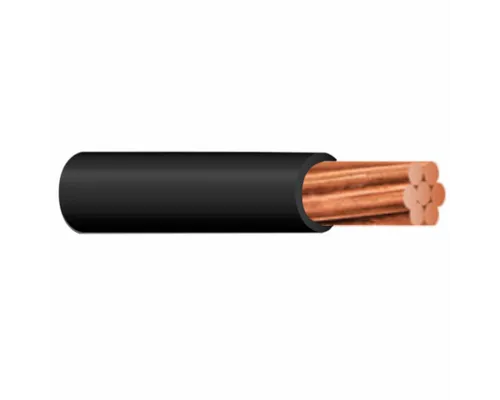

Single copper conductor, stranded, insulated with moisture and heat resistant, chemically cross-linked polyethylene insulation. Temperature rating 90° C in wet dry applications.available.

Applications:
Types USE-2, RHH/RHW-2 are suitable for use general purpose wiring applications may be installed raceway, conduit, direct burial aerial installations where a cable having superior flame retardance is required.

Features:
CT 1/0 larger Gasoline Oil resistant Burial/Sunlight resistant.
-40°C 90°C

Standards:
ASTM B3, B8 B787
UL 44 854, ICEA S-95-658/NEMA WC-70
C(UL) US RW90 1kV:CSA/UL Listed
Federal spec. A-A-59544
105° System
RoHS Compliant

Specifications*:

Size: 8 AWG
Number of Strands: 7
Insulation Thickness (Conductor): 0.060 inches
Outside Diameter: 0.266 Weight: 0.07 lbs per ft
Allowable Ampacity: 55 Amps at Wet/Dry

*Data provided on this page subject change based different manufacturers variances.
