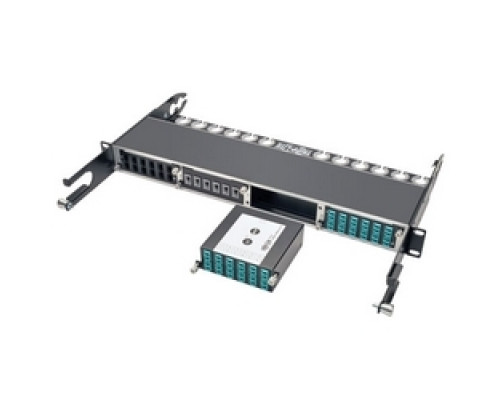

TRIPP LITE N484-1M24-LC12 100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber OM4 MTP/MPO Male w/Pins to x12 LC Duplex

Features

• High Density Fiber Cassette for use with Tripp Lite’s N484-00U and N484-01U chassis
• 100/120Gb to 10Gb Breakout Cassette, with (x12) LC connections to a 24-Fiber OM4 MTP/MPO connection
• 24-Fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity
• Guaranteed compatibility when used with recommended Tripp Lite cabling
• Cassette designed specifically for use with Tripp Lite cables, such as the N820-, N821-, and N846-Series cables
• Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (ibre Channel) requirements
• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
• Housing made of heavy duty, 1.0mm Cold Rolled Steel
• Includes dust caps for unused ports
