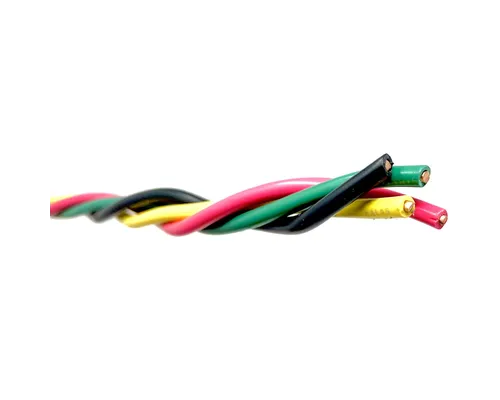

8/3 w/ Grnd Twisted Submersible Pump Cable
Applications:
For wiring within the casing of deep well submersible water pumps. Used in residential, farm and industrial water well applications.
Features:
Resistant to acid, abrasion, alkalis, flame, gas, and oil
Water resistant
Operating temperature range -40° C to 75° C
Sequential footage marking
Standard:
UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable.
Construction:
Conductors:
Annealed bare stranded copper conductors - twisted
Insulation:
Polyvinyl Chloride (PVC)
Specifications*:
Size: 8 AWG
Number of Conductors: 3
Ground Wire Size: 10 AWG (Solid)
Insulation Thickness: 0.060 inches
Twisted Nominal OD: 0.608 inches
Weight per foot: 0.273 lbs
*Data provided on this page is subject to change based on different manufacturers variances.
