Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 15' to maximum 1000'. Please call for longer put ups.
Color:
White
Applications:
18/3 SJTOW Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.
Jacket:
Polyvinylchloride (PVC), White jacket . Temperature range: -40ºC to +60ºC or +105ºC. Voltage rating: 300 Volts. (**Please specify temperature rating in shipping instructions.)
Features:
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone
Standards:
UL Flexible Cord - UL Subject 62
MSHA Approved (where applicable)

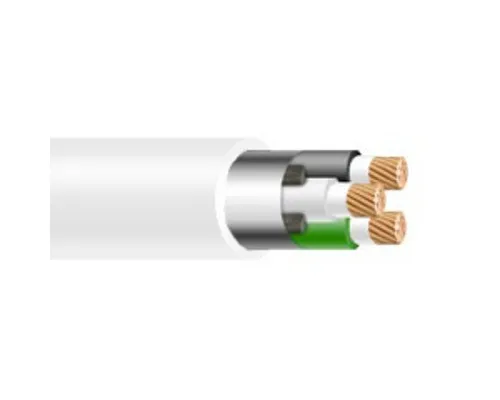

Construction:
Conductors:
18 through 10 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded PVC.
Specifications*:
Size: 18 AWG
Number of Conductors: 3
Conductor Strand: 16/30
Insulation Thickness: 0.762 mm / 0.030 inches
Outside Diameter: 7.62 mm / 0.30 inches
Weight: 0.054 lbs per ft
Current Amps: 10 (Green conductor for grounding only)
Color Code:
3 Conductors: Black, White, Green
*Data provided on this page is subject to change based on different manufacturers variances.
