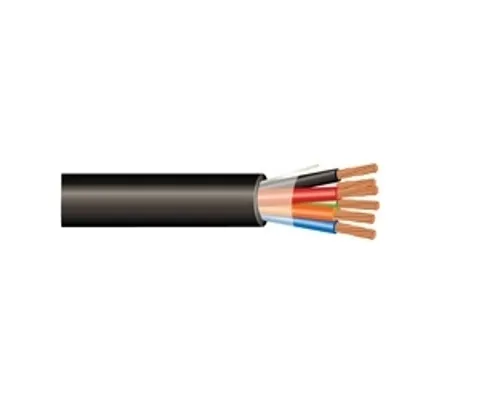

12-12C Stranded Traffic Signal Cable IMSA 19-1, 600V
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for longer put ups.
Color:
Black
Applications:
Signal heads & pedestrian crossing.
Description:
Stranded Bare Copper Conductors Insulated with Polyethylene, Twisted Together and Finished with an Overall Black PVC Jacket.
Conductor:
Stranded Bare Copper per ASTM B-3
Insulation:
PE-Polyethylene
Jacket:
PVC - Polyvinyl Chloride
Color Code:
Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe
Standards:
The cable is manufactured to meet or exceed the latest International Municipal Signal Association (IMSA) Specification No. 19-1
Specifications*:
Size: 12 AWG
Number of Conductors: 12
Conductor Strand: Stranded
Outer Jacket Thickness: 0.060 inches
Outside Diameter: 0.750 inches
Voltage: 600V
Temp Rating: 75 C
Weight: 0.423 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
