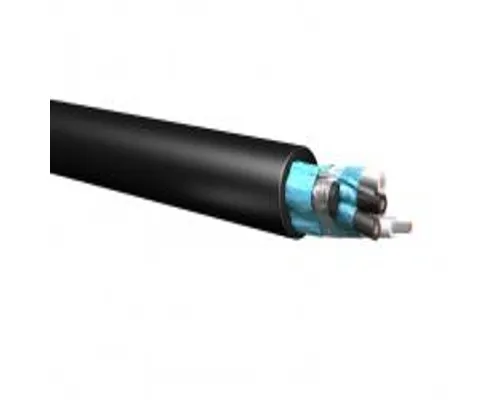

0.6/1kV Unarmored 110°C Gexol® Insulation Individually Shielded Pairs Made in the USA
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.
Features:
- High strand count conductors make this product extremely flexible, easier to install and more resistant to vibration than Type MC, IEC spec or commercial cables.
- Lower dielectric constant and higher insulation resistance reduces electrical losses.
- Excellent resistance to moisture produces stable electrical properties throughout the life of the cable.
- In fire conditions, non chlorinated flame retardant system produces less toxic and less corrosive gasses.
- Dual certified IEEE 1580 Type P and UL 1309/CSA C22.2 No. 245 Type X110.
- Highest ampacity ratings: ABS 100°C, DNV 95°C, LRS 95°C, Transport Canada 95°C.
- Severe cold durability: exceeds CSA cold bend/cold impact (-40/-35° C).
- Flame retardant: IEC 60332-3 Category A and IEEE 1202
Conductor:
Soft annealed flexible stranded tinned copper per IEEE 1580 Table 11.
Insulation:
Flame Retardant Cross-linked Polyolefin, meeting the requirements for Type P of IEEE 1580 and Type X110 of UL 1309/CSA C22.2 No. 245.
Jacket:
Black, arctic grade, flame retardant, oil, abrasion, chemical and sunlight resistant thermosetting compound meeting UL 1309/CSA C22.2 No. 245 and IEEE 1580.
Pairs:
Each pair is twisted with a bare tinned drain wire. Each pair is shielded with polyester-backed aluminum foil tape to afford 100% coverage. Pair to pair isolation plus overall shield is provided. Pair color code: Black-White.
Compliances:
• American Bureau of Shipping (ABS)
• Transport Canada
• Det Norske Veritas (DNV)
• Lloyd's Register of Shipping (LRS)
• NVE 95/1696, FAL
• UL listed as Marine Shipboard Cable
• United States Coast Guard
• CSA listed as Marine Shipboard Cable
Specifications*:
Size: 18 AWG
Number of Pairs: 16
Nominal Diameter: 1.121 inches
Weight: 0.748 lbs per ft
Capacitance (nF/1000 feet) = 28 Inductance (mH/1000) = 0.22 Resistance (Ohms/1000 feet = 7.21 (@ 20°)
*Cable diameters shown as nominal are subject to a ±5% manufacturing tolerance.
