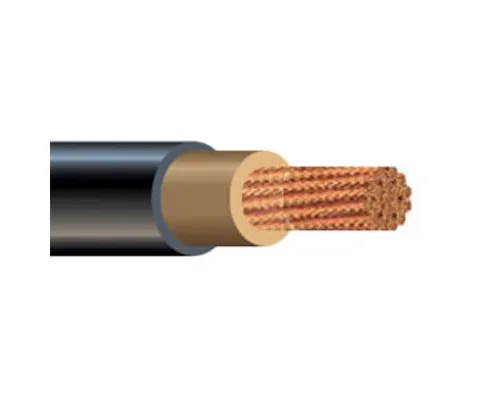

4 AWG 1C Type P Power Cable, 600V

4 AWG 1C Type P Power Cable, 600V

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'. Please call for longer put ups.

Applications:
Designed and constructed for the demanding environments of offshore drilling and petroleum facilities located throughout the world.

Conductor:
Soft annealed flexible stranded tinned copper per IEEE 1580 Table 11.

Insulation/Jacket:
Flame Retardant Cross-linked Polyolefin, meeting the requirements for IEEE 1580 Type P and UL 1309/CSA C22.2 No. 245 Type X110. 2000V/IEC 1000V.

Compliances:
- NVE 95/1696, FAL
- Transport Canada
- Det Norske Veritas (DNV)
- Lloyd's Register of Shipping (LRS)
- American Bureau of Shipping
- UL listed as Marine Shipboard Cable
- United States Coast Guard
- CSA listed as Marine Shipboard Cable
- Unarmored 3/0 and smaller has a jacket per UL 1309 & IEEE 1580.

Features:
- High strand count conductors make this product extremely flexible, easier to install and more resistant to vibration than Type MC, IEC spec or commercial cables.
- Lower dielectric constant and higher insulation resistance reduces electrical losses.
- Excellent resistance to moisture produces stable electrical properties throughout the life of the cable.
- In fire conditions, non chlorinated flame retardant system produces less toxic and less corrosive gasses.
- Dual certified IEEE 1580 Type P and UL 1309/CSA C22.2 No. 245 Type X110.
- Highest ampacity ratings: ABS 100°C, DNV 95°C, LRS 95°C, Transport Canada 95°C
- Severe cold durability: exceeds CSA cold bend/cold impact (-40/-35° C)
- Flame retardant: 60332-3 Category A and IEEE 1202

Specifications*:

Size: 4 AWG
Number of Conductors: 1
Unarmored Diameter: 0.377 inches
Inductive Reactance (Ohms/K ft.): 0.030
Voltage Drop at 110°C (Volts/Amp/k ft.): 0.583
DC Resistance at 25°C (Volts/Amp/k ft.): 0.286
AC Resistance at 110°C (Ohms/k ft.): 0.399
Current AMPS: Free Air 110°C = 196, 110°C = 137, 100°C = 128, 95°C = 121
Net Weight: 0.173 lbs per ft

*Cable diameters shown as nominal are subject to a ±5% manufacturing tolerance.
