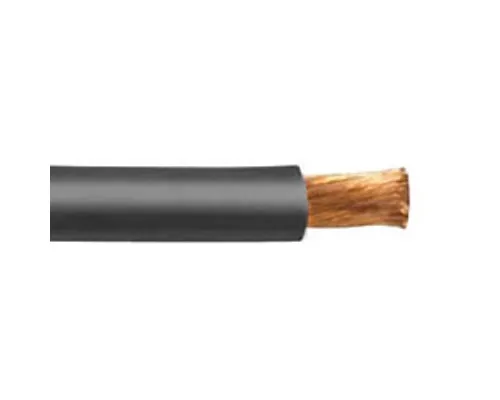

1/0 Welding Cable Class K 250ft, 500ft or 1000ft Spool

1/0 Welding Cable Class K - Spools

Colors Available:
Black, Red, Green, Blue & Yellow

Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.

Also Known As:
Battery Cable, 1/0 Welding Lead, Temporary Power Cable, 1/0 Flexible Cable, 600 Volt Cable, 1/0 Copper Cable, 1/0 Welders Lead, Hurricane Cable, etc.

Features:
Good flexibility. Abrasion-resistant. Good color retention.

Jacket:
Premium-grade 90ºC EPDM. Temperature range: -40ºC to +90ºC

Standards:
RoHS Compliant

Conductor:
Fully annealed stranded bare copper Class K

Specifications*:

Size: 1/0
Conductor Strand: 990/30
Outside Diameter: 14.22 mm / 0.560 inches
Weight: 0.425 lbs per ft
Current Amps: 190 (For 600 Volt In-Line Applications)

*Data provided on this page is subject to change based on different manufacturers variances.
