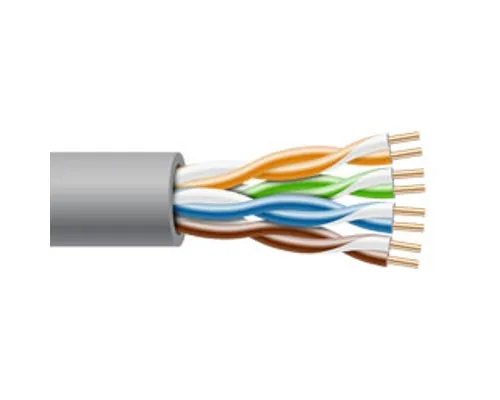

CAT6 23AWG, CMR, Stranded Cable, 1000 ft Spool

23 AWG, CAT6 CMR, Stranded Cable

Applicable Standards:
ETL Listed Type CMR
C(ETL) listed CMR
ETL Verified to ANSI/TIA‐568‐C.2, and ISO/IEC 11801
ROHS Compliant
ATM 155 Mbps
Ethernet 10BASE‐T, 100BASE‐TX, 100BASE‐VG, 100BASE‐T4
1000 Mbps 1000BASE‐T Gigabit Ethernet™ (IEEE 802.3)

Conductor:
23 AWG Bare Copper

Insulation:
HDPE

Shield:
Unshielded

Jacket:
Flame Retardant PVC

Color Code:
- Pair 1: Blue-White/Blue
- Pair 2: Orange-White/Orange
- Pair 3: Green-White/Green
- Pair 4: Brown-White/Brown

Specifications*:

Size: 23 AWG
Number of Pairs: 4

*Data provided on this page is subject to change based on different manufacturers variances.
