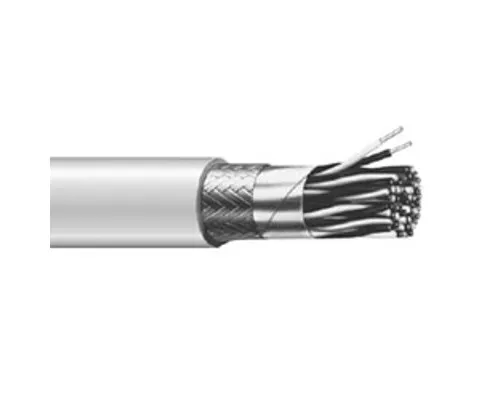

Belden 9842 equals General C0842A, UL 2919, NEC Type CM (UL) c(UL) CMH
Color:
Gray
Applications:
Computers - Industrial equipment - Data transmission - Control circuits - Low capacitance requirements - Suitable for EIA RS-485 applications - Suggested voltage rating: 30 volts
Compliances:
NEC Article 800 Type CM/CMH (UL: 75°C, 300 V)
UL Style 2919 (UL: 80˚C, 30 V)
RoHS Compliant Directive 2011/65/EU
Designed to meet UL 70,000 BTU Vertical Tray Flame Test
Passes CSA CMH Flame Test
CE: Low Voltage Directive (LVD) 2006/95/EC
Assists system designers in meeting FCC Docket 20789 demands
Conductor:•
24 AWG fully annealed stranded tinned copper per ASTM B33. Twisted pairs
Insulation:
Premium-grade, coIor-coded polyethylene
Shield:
100% Flexfoil® aluminum/polyester with 25% overlap, minimum, foil facing out.
Stranded tinned copper drain wire
90% tinned copper braid
Jacket:•
PVC, gray • Temperature range: -20˚C to +80˚C
Color Code:•
1 pair = Black paired with Red
2 pair = Black paired with White
Specifications*:
Size: 24 AWG
Number of Pairs: 2
Conductor Stranding: 7/30
Nominal Insulation Thickness: 0.024 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.304 inches
Nomonal DCR: Cond.-25.7, Shield-2.3
Nomonal Cap. pF/ft: A-11.7, B-21.0
Spec Sheet
View Spec Sheet for Complete Details (PDF)
