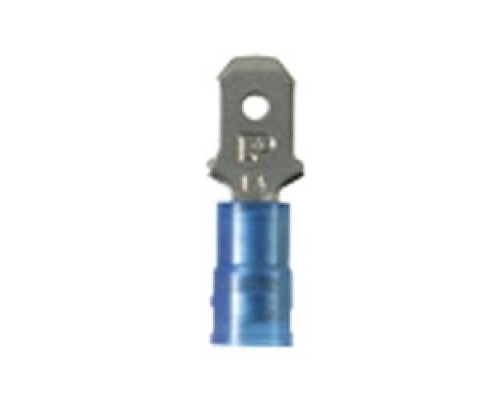

PANDUIT DNF14-250M-C Disc M BlNy .250x.032" 16-14AWG 100

Features

• Male tab couples with (all .250 x .032) female disconnects
• Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Maximum insulation temperature 221F (105C)

Tech Info

UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
