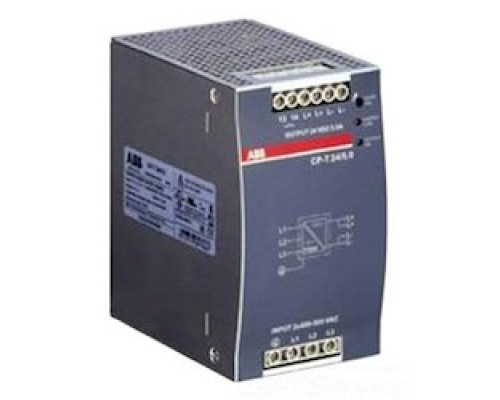

Spec Sheet
Applications
For Used Worldwide In High Fluctuating Networks And Battery-Powered Plants
Features
- Rated output current 5 A
- Efficiency of typical 89%
- Low power dissipation and low heating
- Free convection cooling (no forced cooling with ventilators)
- Ambient temperature range during operation Minus 40 - 70 deg C
- Open-circuit, overload and short-cirt stable
- Integrated input fuse U/I characteristic (fold-forward behaviour at overload - no switch-off)
- LEDs for status indication
- Structural form ideal for installation in distribution panels
- Light-grey enclosure in RAL 7035
- The primary switch mode er supply offers a three-phase supply voltage range of 3 X 400-500 V AC
- A two-phase power supply is also possible and it can also be supplied by 480-820 V DC
- Equipped with two generous capacitors, which ensure mains buffering of at least 20 usec
Specification Description
Voltage Rating: Input: 340 - 575 V AC/480 - 820 V DC, Output: 24 V DC
Amperage Rating: Input: 0.36 A, Output: 5 A At Less Than Or Equal To 60 deg C
Wattage: 120 W
Frequency Rating: 47 - 63 Hz
Phase: 3 PH
Fuse Rating: 2 A At 600 V AC/Phase
Material:al Housing
Efficiency: 89 %
Insulation: Rated Insulation Voltage Ui: Input/Output - 3 kV AC, Input/PE - 1.5 kV AC, Output/PE - 0.5 kV AC, 0.71 K V DC, Signalling Contact/PE - 0.5 kV DC
Cable Size: Fine Strand With Wire End Ferrule: 24 - 11 AWG (Input/utput/Signaling), Fine Strand Without Wire End Ferrule And Rigid: 24 - 10 AWG (Input/Output/Signaling)
Enclosure: IP20
Environmental Conditions: Operating Temperature: -40 To 70 deg C, Rated Load: -40 To 60 deg C, Storage Temperature: -40 To 85 deg C, Damp Heat, Cyclic: 95 %, Without Condensation
Width: 74 mm
Height: 131 mm
Depth: 119 mm
Rise Time: 150 msec At Rated Load, 500 msec With 3500 uF
Control Time: Less Than 2 msec
Discharge Current: Input/Output: 0.25 mA, Towards PE: 3.5 mA
Power Failuffering Time: 20 msec
Capacitive Load: 3500 uF
Power Consumption: 135 W
Inrush Current Limiting: 10 A
Wire Strip Length: 8 mm
Tightening Torque: 0.6 N-m
Tech Info
C/US UL 508, 1310, 60950 Listed, CAN/CSA C22.2, CE, GOST Certified, IEC/EN 61204, EN 50178, EN 60950, IEC/CISPR 22, EN 55022: Class B Approved, RoHS Compliant
