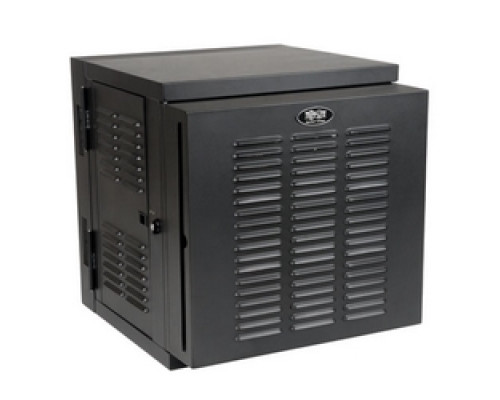

TRIPP LITE SRW12USNEMA SRW12USNEMA Tripp Lite 12U NEMA 12 Wall-Mount Rack Enclosure Cabinet for Harsh Environments, Double Hinge, Removable Side Panels, 25H x 24W x 26D

Features

• Saves Valuable Workspace
• Perfect for factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other harsh, dirty work environments where you need equipment to be secure, organized, out o f the way and protected from environmental contaminants
• Houses EIA-standard 19 in. rack equipment in 12U of space
• Maximum load capacity of 200 lb.
• NEMA 12 (IP54) Protection Rating
• Built-in air filter, louvered vents and sealing door gaskets keep out rt, dust, lint, oil, drips and splashes
• Removable air filter can be replaced with standard, off-the-shelf furnace filters
• Built-in high-performance door fans plug into standard NEMA 5-15R outlet (6 ft. power cord included)
• Sealed cable ports maintaindust and moisture resistance
• Hinged Cabinet for Convenient Access
• Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance
• Reversible doors can open left or right to accommodate various rackconfigurations
• Keeps Important Equipment Secure
• Side panels and doors lock securely to help prevent damage, tampering or theft
• Vented panels and built-in fans provide generous airflow to keep equipment cool
• Convenient ports with removable covers and otective brush strips allow cable routing through rear door
• Easy Enclosure and Equipment Installation
• Ships fully assembled for quick installation
• Ready to mount to the wall
• Wall-mounting holes spaced 16 in. apart for standard wall stud placement
• Vecal mounting rails adjust in 7/8 in. increments to accommodate equipment up to 20.5 in. deep, such as network switches and patch panels
• Rails support square-hole or 12-24 threaded-hole mounting
• Rack spaces numbered for easy reference
• Meets Payment Car Industry Standards
• Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance

Specification Description

Product Group: Racks
