Spec Sheet
Applications

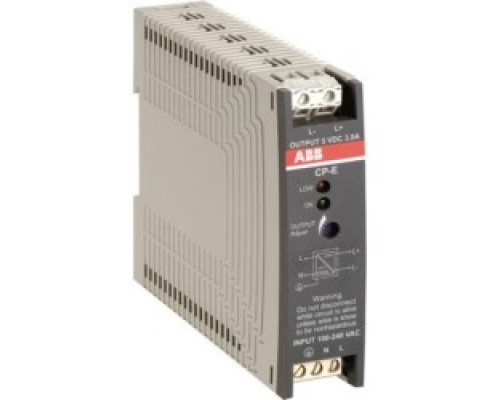

Optimized for world-wide applications: the CP-E power supplies can be supplied within a wide range of AC or DC voltage. The CP-E range types feature a continuously adjustable output voltage. Thus, they can be optimally adapted to the application.
Features
- Output voltages 5 V, 12 V, 24 V, 48 V DC
- Adjustable output voltages
- Output currents 0.625 A / 0.75 A / 1.25 A / 2.5 A / 3 A / 5 A / 10 A / 20 A
- Power range 15 W, 18 W, 30 W, 60 W, 120 W, 240 W, 480 W
- High efficiency of up to 90 %
- Low power dissipatiand low heating
Specification Description
Voltage Rating: Input: 90 - 264 V AC/120 - 375 V DC, Output: 24 V DC
Amperage Rating: Input: 335 mA At 115 V AC, 210 mA At 230 V AC, Output: 10 A At Less Than Or Equal To 60 deg C
Wattage: 18 W
Frequency Rating: 47 - 63 Hz
Phase: 1 PH
Fuse Rating: 2At 250 V AC Slow Acting
Material: Plastic Housing
Efficiency: 77 %
Insulation: Rated Insulation Voltage Ui: Input/Output - 3 kV AC, Input/PE - 1.5 kV AC
Cable Size: Fine Strand With/Without Wire End Ferrule And Rigid: 24 - 14 AWG (Input/Output)
Enclre: IP20
Environmental Conditions: Operating Temperature: -20 To 70 deg C, Rated Load: -20 To 60 deg C, Storage Temperature: -25 To 85 deg C, Damp Heat: 95 % RH, Without Condensation
Width: 22.5 mm
Height: 90 mm
Depth: 114 mm
Power Failure Bufferingme: 20 msec At 115 V AC, 75 msec At 230 V AC
Discharge Current: Input/Output: 0.25 mA, Input/PE: 3.5 mA
Control Time: Less Than 2 msec
Capacitive Load: 7000 uF
Tightening Torque: 0.6 N-m
Wire Strip Length: 6 mm
Inrush Current Limiting: 10 A At 115 , 18 A At 230 V AC
Rise Time: 150 msec At Rated Load, 500 msec With 7000 uF
Power Consumption: 22.8 W
Tech Info
C/US UL 508, 1310, 60950 Listed, CAN/CSA C22.2, CE, GOST Certified, IEC/EN 61204, EN 50178, EN 60950, IEC/CISPR 22, EN 55022: Class B Approved, RoHS Compliant
