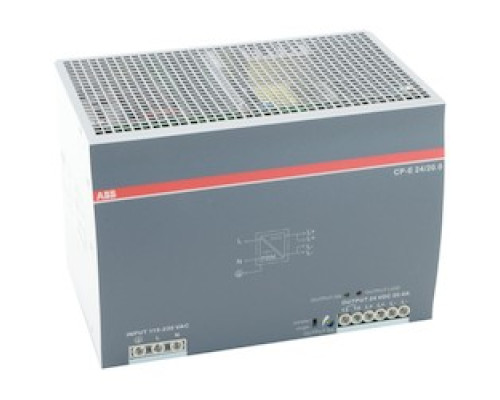

ABB 1SVR427036R0000 Power supply, DIN mount CP-E Range switch mode; 90-264 V AC / 120-375 V DC input, 24 V DC / 20 A output

Applications

Optimized for world-wide applications: the CP-E power supplies can be supplied within a wide range of AC or DC voltage. The CP-E range types feature a continuously adjustable output voltage. Thus, they can be optimally adapted to the application.

Features

• Output voltages 5 V, 12 V, 24 V, 48 V DC
• Adjustable output voltages
• Output currents 0.625 A / 0.75 A / 1.25 A / 2.5 A / 3 A / 5 A / 10 A / 20 A
• Power range 15 W, 18 W, 30 W, 60 W, 120 W, 240 W, 480 W
• High efficiency of up to 90 %
• Low power dissipatiand low heating

Specification Description

Voltage Rating: Input: 90 - 264 V AC/210 - 375 V DC, Output: 24 V DC
Amperage Rating: Input: 4.9 A At 115 V AC, 2.5 A At 230 V AC, Output: 20 A At Less Than Or Equal To 60 deg C
Wattage: 480 W
Frequency Rating: 47 - 63 Hz
Phase: 1 PH
Fuse Rating: 10At 250 V AC Slow Acting
Material: Metal Housing
Efficiency: 89 %
Insulation: Rated Insulation Voltage Ui: Input/Output - 3 kV AC, Input/PE - 1.5 kV AC
Cable Size: Fine Strand With Wire End Ferrule: 24 - 11 AWG (Input/Output), Fine Strand Without Wirend Ferrule And Rigid: 24 - 10 AWG (Input/Output)
Enclosure: IP20
Environmental Conditions: Operating Temperature: -40 To 70 deg C, Rated Load: -40 To 55 deg C, Storage Temperature: -40 To 85 deg C, Damp Heat: 95 % RH, Without Condensation
Width: 175 m
Height: 123.6 mm
Depth: 123.6 mm
Rise Time: 150 msec At Rated Load, 500 msec With 7000 uF
Discharge Current: Input/Output: 0.25 mA, Input/PE: 3.5 mA
Power Failure Buffering Time: 25 msec At 115 V AC, 30 msec At 230 V AC
Control Time: Less Than 2 mWire Strip Length: 8 mm
Tightening Torque: 0.62 - 1 N-m
Inrush Current Limiting: 25 A At 115 V AC, 50 A At 230 V AC
Power Consumption: 539 W
Capacitive Load: 7000 uF

Tech Info

C/US UL 508, 1310, 60950 Listed, CAN/CSA C22.2, CE, GOST Certified, IEC/EN 61204, EN 50178, EN 60950, IEC/CISPR 22, EN 55022: Class B Approved, RoHS Compliant
