Spec Sheet
Applications

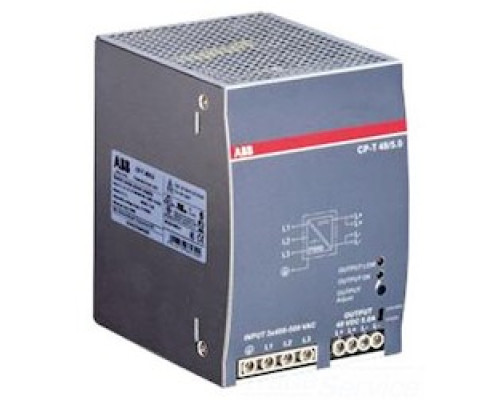

Wide range input optimized for world-wide applications: the CP-T power supplies can be used in 340 - 575 V AC or 480 - 820 V DC supply systems. The CP-T range feature a continuously adjustable output voltage. Thus, they can be optimally adapted to the app
Features
- Rated output voltages 24 V, 48 V DC
- Output voltage adjustable via front-face rotary potentiometer "OUTPUT Adjust"
- Rated output currents 5 A, 10 A, 20 A, 40 A
- Rated output powers 120 W, 240 W, 480 W, 960 W
- Three-phase or two-phase operation (see derating n
Specification Description
Voltage Rating: Input: 340 - 575 V AC/480 - 820 V DC, Output: 24 V DC
Amperage Rating: Input: 0.65 A, Output: 10 A At Less Than Or Equal To 60 deg C
Wattage: 240 W
Frequency Rating: 47 - 63 Hz
Phase: 3 PH
Fuse Rating: 2 A At 600 V AC/Phase
Materialtal Housing
Efficiency: 90 %
Insulation: Rated Insulation Voltage Ui: Input/Output - 3 kV AC, Input/PE - 1.5 kV AC, Output/PE - 0.5 kV AC, 0.71 KV DC, Signalling Contact/PE - 0.5 kV DC
Cable Size: Fine Strand With Wire End Ferrule: 24 - 11 AWG (Input/utput/Signaling), Fine Strand Without Wire End Ferrule And Rigid: 24 - 10 AWG (Input/Output/Signaling)
Enclosure: IP20
Environmental Conditions: Operating Temperature: -40 To 70 deg C, Rated Load: -40 To 60 deg C, Storage Temperature: -40 To 85 deg C, Damp Heat, Cyclic: 95 %, Without Condensation
Width: 89 mm
Height: 124 mm
Depth: 118.8 mm
Control Time: Less Than 2 msec
Power Failure Buffering Time: 20 msec
Rise Time: 150 msec At Rated Load, 500 msec With 7000 uF
Discharge Current: Input/Output5 mA, Towards PE: 3.5 mA
Power Consumption: 270 W
Wire Strip Length: 8 mm
Capacitive Load: 7000 uF
Inrush Current Limiting: 20 A
Tightening Torque: 0.6 N-m
Tech Info
C/US UL 508, 1310, 60950 Listed, CAN/CSA C22.2, CE, GOST Certified, IEC/EN 61204, EN 50178, EN 60950, IEC/CISPR 22, EN 55022: Class B Approved, RoHS Compliant
