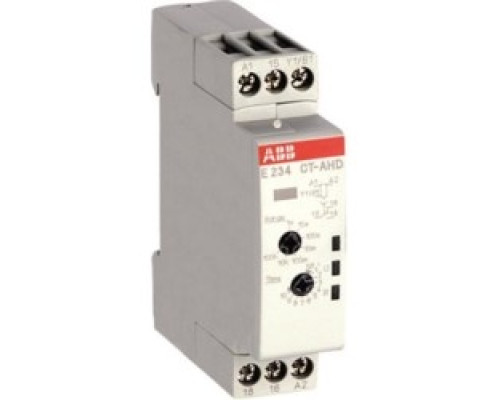

ABB 1SVR500110R0000 Electronic Timer Off Delayed With 1C/O Contact 24-48V DC, 24-240V AC

Applications

For Installation In Distribution Cabinets

Features

• Rated control supply voltage 24-48 V DC, 24-240 V AC
• Single-function timer OFF-delay
• 7 time ranges (0.05 sec - 100 hr) in one device
• 1 C/O contact (250 V / 6 AMP)
• Control input: voltage-related triggering, polarized, capable of switching a parallel ld
• 2 LEDs for status indication
• Width of only 17.5 mm
• Light-grey enclosure in RAL 7035
• Resistance to reverse polarity
• 30 msec of control pulse length

Specification Description

Timing Range: 05 sec - 10 min
Coil: 24 - 240 V AC, 24 - 48 V DC
Contact Configuration: 1 C/O
Contact Rating: 250 V, 6 A
Mounting: DIN Rail (EN 60715), Snap-On
Connection: Fine Strand With Wire End Ferrule: (2) 20 - 16 AWG/(1) 20- 14 AWG, Fine Strandthout Wire End Ferrule: (2) 20 - 16 AWG/(1) 20- 14 AWG, Rigid: (2) 20 - 16 AWG/(1) 20- 12 AWG
Enclosure: IP50 (Enclosure), IP20 (Terminal)
Size: 0.69 in. Width X 2.76 in. Height X 2.28 in. Depth
Operating Cycles: Mechanical Switching: 30000000 Cycles,Electrical Switching: 100000 Cycles
Operating Temperature: -20 To +60 deg C
Environmental Conditions: Storage Temperature: -40 To 85 deg C, Damp Heat: 95 % RH
Switching Current: 6 A At 230 V AC (Resistive), 3 A At 230 V AC (Inductive), 6 A At 24 V DC Resistive), 2 A At 24 V DC (Inductive)
Switching Current: 100 mA Minimum
Switching Voltage: 12 V Minimum
Amperage Rating: 48.5 mA At 115 V AC, 60.91 mA At 230 V AC, 13.58 mA At 24 V DC
Current Consumption: 3.72 mA At 24 V DC, 23.81 mA At 230 V AC, 214 mA At 115 V AC
Recovery Time: Less Than 50 msec
Accuracy: Less Than 005% Within The Rated Control Supply Voltage, Less Than 06% Within The Temperature Range
Stripping Length: 7 mm
Tightening Torque: 0.5 - 0.8 N-m
Indicator: Green LED For Supply Voge, Yellow LED For Relay Status
Contact Material: Cd-free
Output Circuit: 15-16/18

Tech Info

C/US UL 508 E140448 Listed, CB, CCC, CE, GOST Certified, RoHS Compliant
