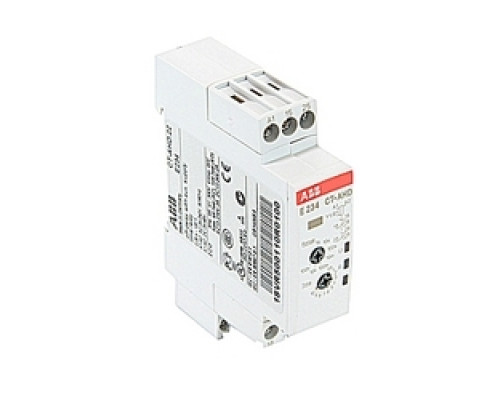

ABB 1SVR500110R0100 Electronic Timer Off Delayed With 2C/O Contact 24-48V DC, 24-240V AC

Applications

For Installation In Distribution Cabinets

Features

• Rated control supply voltage 24-48 V DC, 24-240 V AC
• Single-function timer ON-delay
• 7 time ranges (0.05 sec - 100 hr) in one device
• 1 C/O contact (250 V / 6 A)
• 2 LEDs for status indication
• Width of only 17.5 mm
• Light-grey enclosure in RAL 7035

Specification Description

Timing Range: 05 sec - 10 min
Coil: 24 - 240 V AC, 24 - 48 V DC
Contact Configuration: 2 C/O
Contact Rating: 250 V, 5 A
Mounting: DIN Rail (EN 60715), Snap-On
Connection: Fine Strand With Wire End Ferrule: (2) 20 - 16 AWG/(1) 20- 14 AWG, Fine Strandthout Wire End Ferrule: (2) 20 - 16 AWG/(1) 20- 14 AWG, Rigid: (2) 20 - 16 AWG/(1) 20- 12 AWG
Enclosure: IP50 (Enclosure), IP20 (Terminal)
Size: 0.69 in. Width X 2.76 in. Height X 2.28 in. Depth
Operating Cycles: Mechanical Switching: 30000000 Cycles,Electrical Switching: 100000 Cycles
Operating Temperature: -20 To +60 deg C
Environmental Conditions: Storage Temperature: -40 To 85 deg C, Damp Heat: 95 % RH
Amperage Rating: 19.89 mA At 115 V AC, 31.3 mA At 230 V AC, 24.12 mA At 24 V DC
Accuracy: Ls Than 0.05% Within The Rated Control Supply Voltage, Less Than 0.6% Within The Temperature Range
Recovery Time: Less Than 50 msec
Contact Material: Cd-free
Switching Current: 100 mA Minimum
Indicator: Green LED For Supply Voltage, Yellow LED For Rel Status
Switching Voltage: 12 V Minimum
Switching Current: 5 A At 230 V AC (Resistive), 3 A At 230 V AC (Inductive), 5 A At 24 V DC (Resistive), 2 A At 24 V DC (Inductive)
Output Circuit: 25-26/28

Tech Info

C/US UL 508 E140448 Listed, CCC, CE, GOST Certified, RoHS Compliant
