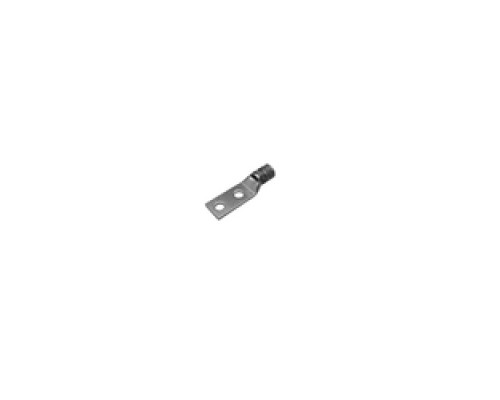

BURNDY YA4CL2TC10 25021094 Copper Compression Lug, 2 Hole With Inspection Window, Standard Barrel, #10 Stud, 4 AWG Stranded, Electro-Tin Plated, Gray

Features

• Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.

Specification Description

Compression Lug
Tongue Angle: Straight
Length: 2.24 Inch
Barrel Style: Chamfered
Bolt Hole Size: 0.20 Inch
Stud Size: #10
Barrel Type: Standard
Thickness: 0.09 Inch
B Length: 0.81 Inch
Pad Width: 0.5 Inch
Hole to Hole Distance: 0.63 Inch
Strip Length: 7/8 Inch
Number Of Holes: 2
Wire Size: 4 AWG Copper Stranded
Type Of Plating: Electro Plated Tin
Color Code: Gray
Index Number: 8, 346
Material: Copper
