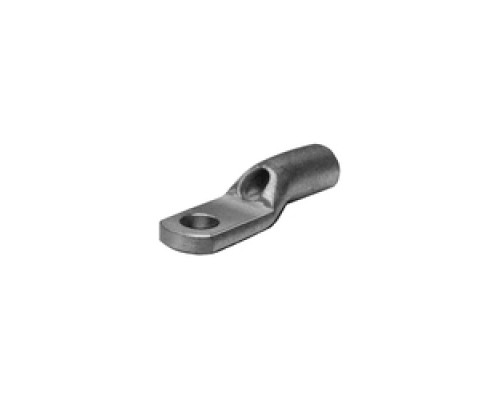

BURNDY YAV10BOX 515150 Copper Compression Lug, Bevel Entry, 1 Hole With Inspection Window, Standard Barrel, #8 - #10 Stud, 12-10 AWG Solid & 12-10 AWG Stranded, Electro-Tin Plated, 600 Volt - 35 Kilo-Volt

Features

• Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.

Specification Description

Compression Lug
Tongue Angle: Straight
Length: 0.97 Inch
Tongue Type: Ring
Barrel Style: Chamfered
Stud Size: #8-#10
Barrel Type: Standard
Thickness: 0.06 Inch
B Length: 0.4 Inch
Pad Width: 0.38 Inch
Strip Length: 7/16 Inch
Number Of Holes: 1
Wire Size: 12-10 AWG Copper Solid, 12-10 AWG Copper Stranded
Type Of Plating: Electro Plated Tin
Connector Type: Ring Terminal
Material: Copper
Installation: Y10D, Y10-22 (Non-Ratchet), MR8G98, MR8-9Q, Y8MRB-1, MR20, N10HT, N10HT-24, Y122CMR (Ratchet)
Voltage Rating: 600 Volt - 35 Kilo-Volt
