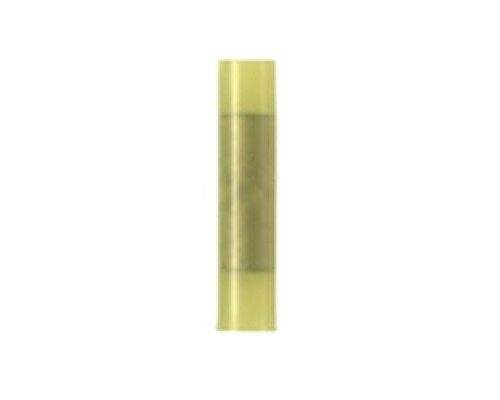

PANDUIT BSN10-L Panduit BSN10-L Nylon Insulated Butt Splice

PANDUIT BSN10-L Panduit BSN10-L Nylon Insulated Butt Splice
Model:
BSN10-L, 250994
SKU:
BSN10-L, 250994
Availability:
In Stock
documents:
Spec Sheet
Request Quote
  0 reviews
Delivery
Payment
Support
info@safsale.com

Features

  • Designed to splice two solid or stranded wires together to repair or lengthen wires
  • Butted configuration provides low profile for limited space applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Internal wire stop assures proper length of insertion into terminal barrel
  • UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
  • UL and CSA rated up to 600 V per UL 486

Tech Info

C22.2 No 65, UL 486C

Technical

Indoor/Outdoor
INDOOR/OUTDOOR
Termination/Splice
SPLICE
