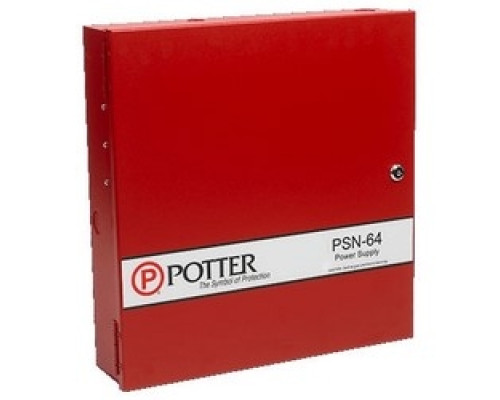

POTTER ELECTRIC 3006436 PSN-64 Power Expander, 5.1A at 120 VAC, 2.5A at 240 VAC, 50/60 Hertz, 60 Milliampere Standby, 200 Milliampere Alarm, 18 Gauge Cold Rolled Steel, Red Powder Coated

Features

• PSN-64 Has 6 Ampere Regulated with 4 Output
• PSN-106 Has 10 Ampere Regulated with 6 Output
• May be Configured as Upto Three Class "A" Style "Z" Notification Circuits
• 3 Ampere, 24 VDC Programmable Output Power
• Supervised Battery Charger 27.3 at 1A (Suppts 7-55 AH Batteries)
• Easy to install Cabinet with Leveling Mounts and Key Lock
• Wiring Knockouts Provided on Sides and Top of Cabinet
• Two Trouble Relays (5A at 30VDC) General System Trouble (Programmable for AC Delay) Low AC Trouble with Optional Dela Settings
• Diagnostic LED’s Status LED’s for Active NAC and NAC Trouble Conditions Status LED’s for Earth Fault (Amber), AC (Green), Battery Fault (Amber)
• Trouble Memory Feature Captures Troubles Which Have Previously Restored
• Synchronized NotificationAppliance Circuits Potter/AMSECO, Wheelock, Gentex, System Sensor
• Configurable Output Circuits (DIP Switch Sets Options for Each Circuit)
• 15 Milliamp at 8 to 33 VDC Input Trigger
• Reference EOL Allows 2 K -27 K EOL Value to be Used
• Quadrasync Providesanel Wide Synchronization of Same or Multiple Brands
• Passthrough Mode Allows the Outputs to Match the Input Signal

Tech Info

UL (Canada and US)
