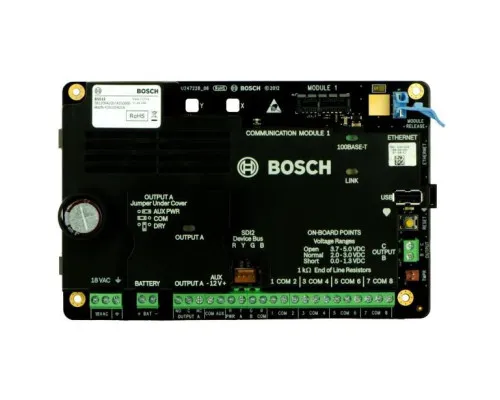

The B3512 control panel integrates intrusion and residential fire, providing one simple user interface for both systems. The B3512 provides up to 16 individually identified points in a single area. The control panel can communicate through its built-in Ethernet port (not applicable to “E” control panels), or through compatible plug-in modules that can send events over the public switched telephone network (PSTN) or over cellular network communications. With the B3512, you can monitor doors, windows, and motion within areas like showrooms or those that hold inventory. Each user can have a personalized passcode, a wireless keyfob, and a credential to control the system.
The B11 Small Control Panel Enclosure houses many Bosch control panels and modules. The enclosures are compatible with an enclosure tamper switch (D110 or ICP-EZTS), lock and key set (D101), and can hold one battery (up to 7 Ah).
The CX4010 is for use in North America. It converts 110 VAC primary voltage input to 18 VAC, 22 VA secondary input.
B3512 Features
- Provides up to 16 points using 8 on-board and 8 wireless points for installation flexibility with perimeter and interior control. Supports keypad points
- On-board Ethernet port for Conettix IP alarm communication and remote programming, compatible with modern IP networks including IPv6/ IPv4, Auto-IP, and Universal Plug and Play
- Installer-friendly features for simple installation and communications, including on-board USB for easy on-site RPS programming, plus support for Remote Connect Service (not available in Europe, the Middle East, or Africa), and plug-in PSTN and cellular communication modules for simple installation and communications
- Remote Security Control (RSC) app which allows users to control their security systems - and view system cameras - remotely from mobile devices such as phones and tablets
- Programmable keypad shortcuts, situation sensitive on-screen help, and a bilingual user interface make system operation simple and easy
B11 Features
- Easy to install standoff location for mounting supporting modules
- Made with cold-rolled steel with a white matte finish
- Easy access locations for battery placement
- Optional taper switch mounting location
Downloads
The B3512 control panel integrates intrusion and residential fire, providing one simple user interface for both systems. The B3512 provides up to 16 individually identified points in a single area. The control panel can communicate through its built-in Ethernet port (not applicable to “E” control panels), or through compatible plug-in modules that can send events over the public switched telephone network (PSTN) or over cellular network communications. With the B3512, you can monitor doors, windows, and motion within areas like showrooms or those that hold inventory. Each user can have a personalized passcode, a wireless keyfob, and a credential to control the system.
The B11 Small Control Panel Enclosure houses many Bosch control panels and modules. The enclosures are compatible with an enclosure tamper switch (D110 or ICP-EZTS), lock and key set (D101), and can hold one battery (up to 7 Ah).
The CX4010 is for use in North America. It converts 110 VAC primary voltage input to 18 VAC, 22 VA secondary input.
B3512 Features
- Provides up to 16 points using 8 on-board and 8 wireless points for installation flexibility with perimeter and interior control. Supports keypad points
- On-board Ethernet port for Conettix IP alarm communication and remote programming, compatible with modern IP networks including IPv6/ IPv4, Auto-IP, and Universal Plug and Play
- Installer-friendly features for simple installation and communications, including on-board USB for easy on-site RPS programming, plus support for Remote Connect Service (not available in Europe, the Middle East, or Africa), and plug-in PSTN and cellular communication modules for simple installation and communications
- Remote Security Control (RSC) app which allows users to control their security systems - and view system cameras - remotely from mobile devices such as phones and tablets
- Programmable keypad shortcuts, situation sensitive on-screen help, and a bilingual user interface make system operation simple and easy
B11 Features
- Easy to install standoff location for mounting supporting modules
- Made with cold-rolled steel with a white matte finish
- Easy access locations for battery placement
- Optional taper switch mounting location
