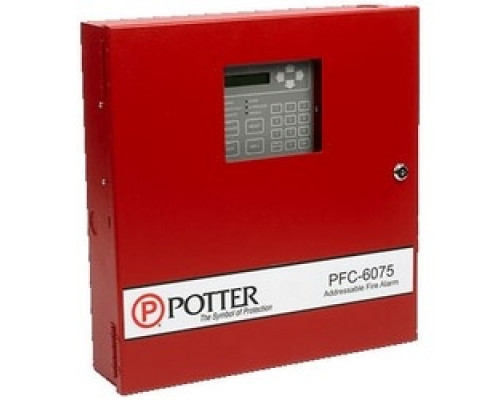

POTTER ELECTRIC 3006457 PFC-6075 Fire Alarm Control Panel, 75 Analog/Addressable Point, 3A at 120 VAC, 2A at 240 VAC, 50/60 Hertz, 16" Width x 3-7/8" Depth x 17" Height

Features

• 75 Analog/able Points in Any Combination
• 4 NACS, 2 Regulated, Rated at 3 Amps each and 2 Input/Output (I/O) Circuits rated at 1 Ampere each
• Strobe Synchronization and System Wide Sync for Potter/ AMSECO, Gentex, Cooper Wheelock and System Sensor Strobes
• 99 Software Zones
• Large LCD and Keypad for Ease of Operation
• Cabinet with Enclosure Rather than Cabinet will House 8 or 18 AH batteries. Dead Front Cabinet for Clean Look
• Smoke Detector Drift Compensation and Maintenance Alerts
• NFPA 72 Compnt Smoke Sensitivity Test Built-In
• System Wide Class A or Class B
• 1,000 Event History Buffer
• Optional Two line DACT (UD-1000)
• P-Link Communication Line for Annunciators and Accessories
• Ethernet Port for Programming and Network Connectivity
• E-Mail Sm Status, Reports and Event Information
• Integrated, Listed IP Communicator

Tech Info

UL
