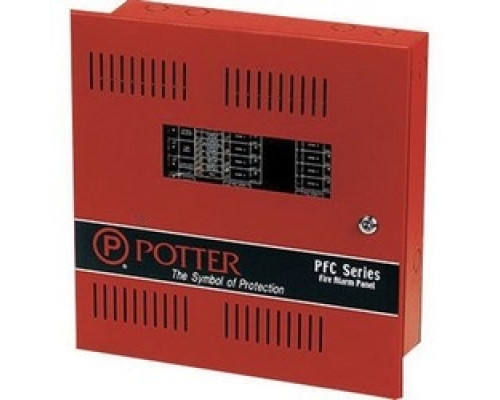

POTTER ELECTRIC 3992020 PFC-5004E Fire Alarm Control Panel, 120/240 Volt AC, 2 Amp At 120 Volt, 1 Amp At 240 Volt

Features

• 4 class B (style B) with 2 class A (style D) initiating circuits. expandable up to 8 class B (style B) 4 class A (style D) initiating circuits
• Predefined initiating circuits can be configured as waterflow or latching/non- latching supervisory
• Selectable alarm verification on initiating circuits
• Zone disconnect switches
• 2 class A/B (style Z/Y) notification circuits (1.7 Amp max per circuit) expandable up to 4 class A/B (style Z/Y) notification circuits
• Each notification circuit can be configured as ilenceable or non-silenceable
• Audibles may be configured as steady, temporal code, california code, or march time
• Auto signal silence
• Auxiliary relay contacts for common alarm, common trouble, and common supervisory
• Built-in RS-485 interface for RA8Fultiplexed remote annunciators (Up to 3 Annunciators)
• Built-in walk test operation
• Output for 4-wire resettable regulated smoke power supply
• Easy configuration via DIP switches

Tech Info

UL Listed, MEA Approved
