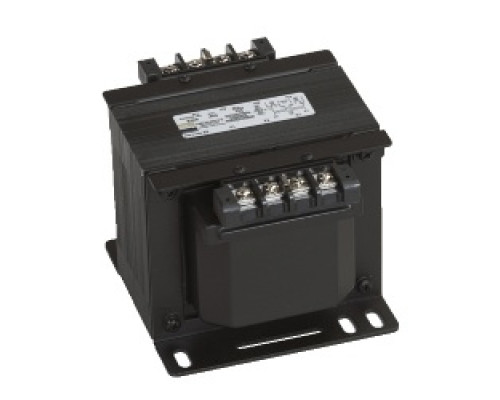

SOLA HD E750 78347253130 SBE - encapsulated, industrial control transformer, Copper Wound Series, 750 VA, 220 x 440 Volt Primary, 110 Volt Secondary, 50/60 Hz, 230 x 460 Volt Primary, 115 Volt Secondary, 50/60 Hz, 240 x 480 Volt Primary, 120

Features

• 50 - 1000 VA, 50/60 Hz - suitable for worldwide applications
• Interleaved copper windings reduce I R losses and maximize efficiency
• 55C deg. Rise, 105C deg. insulation system to minimize heat
• Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants
• Meets or exceeds NEMA Standard ST-1 and ANSI C89.1 for load inrush capability
• Integrally molded, flame retardant (IEC 707/ISO Class 1210) Terminal Blocks provide greater terminal contact area and improved conductivity
• Heavy gauge steel mounting plate
• Mounting dimensions are compatible with similar control transformers
• Secondary fuse holders (FB2X) included for 13/32 x 11/2 cartridges (fuses not included)
• Factory-installed fuse holders are available (See W, WA & WB options)
• Ten year limited warranty
