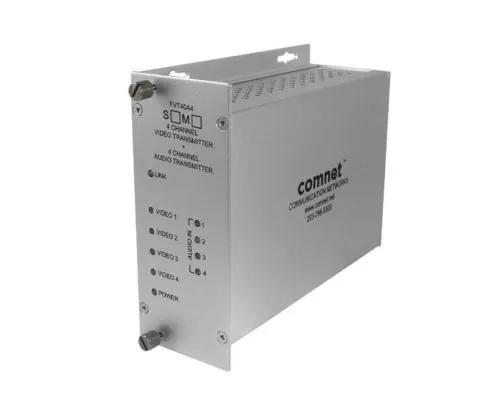

4-Channel Digitally Encoded Video Transmitter + Audio Channels, sm, 1 fiber.
The ComNet FVT40A4S video/audio multiplexer utilizes 10-bit encoding for true EIA/TIA RS-250C Short-Haul broadcast quality transmission, and 24-bit at a 96 Khz sampling rate the highest possible fidelity. ensures that performance remain completely unaffected up to maximum usable optical distance or path loss. These environmentally hardened units provide of four independent simplex line-level channels over one multimode mode fiber. FVT/FVR40A4 series is transparent universally compatible with any NTSC, PAL, SECAM camera system. Plug-and-play design ease installation, no electrical adjustments are ever required.
- Single Mode
- 4 real-time on fiber
- 4 24-bit/96 quality
- Digitally Transmission: degradation loss
- 20Hz 18Khz frequency response
- Line-Level 600 ohm balanced input output level +6dBm
- Directly all CCTV systems
- Wide dynamic range: attenuators never required
- Optical distances 48 km (30 miles)
- Designed installation in harsh out-of-plant/unconditioned industrial roadside operating environments (-40º +75ºC ambient). Fully compliant environmental requirements NEMA TS-2 Traffic Signal Control Equipment
- Voltage transient protection power input/output line from voltage surges other events
- Bi-color LED status indicators confirm status
- Hot-swappable modules
- Interchangeable between stand-alone mount use – ComFit
