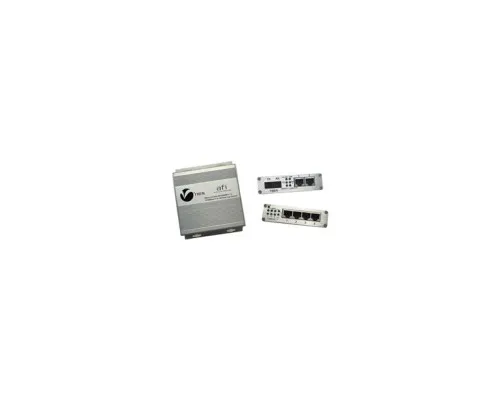

Ethernet Switch Rack Card 4 Port 100BASE-TX. The MXR4-100TX series combines four copper Ethernet ports. MXR4-100TX units allow transmission speeds of 10 Mb/s or 100 Mb/s on each of the copper ports. The MXR4-100TX series is configured to auto negotiate the data ports to either 10Base-T or 100Base-TX Ethernet data at full or half duplex. The auto negotiate feature also selects the proper MDI or MDIX interface. This unit is contained in a compact and rugged aluminum housing with internal dc voltage regulation. The detachable terminal block, RJ45 Ethernet data connector, and LED indicators provide for easy installation and monitoring of data and dc power. The MXR4-100TX is designed for rack mounting in the MXRC-1 subrack.
- Four 10/100/1000Mbps auto configuration port
- Comply with IEEE 802.3 10BaseT, 802.3u 100 BaseT, 802.3ab 1000 BaseT
- Store and forward switching mechanism
- Auto-Negotiation
- MDI/MDIX Auto-Crossover supported
- LED Indication (Link/Act, SPD, Power)
Downloads
