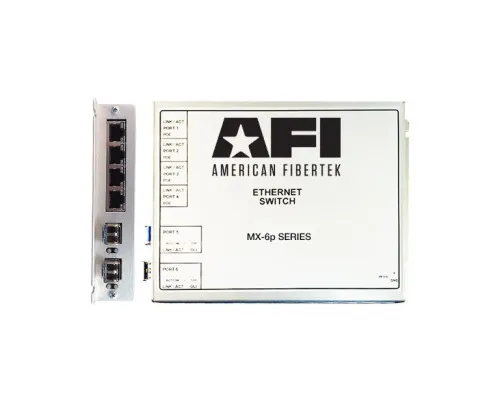

The American Fibertek MX-6p-PoE-HP-DIN transmits and receives (4) copper 10/100 Base-TX Ethernet signals at the RJ45 ports and (2) optical 1000 Base-X over 1 or 2 optical fibers. The system is comprised of two or more units forming communication links. The MX-6p-PoE-HP Series also sources up to 60 Watts of power to an Ethernet-powered device (PD) for up to 2 RJ45 ports. The power is carried over all 4 pairs of the Ethernet cable. However, it is required that the PD have independent discovery and classification interfaces for both the data pair and the spare pair of the Ethernet cable. If only a single RJ45 port requires 60 Watts, 2 of the other RJ45 ports are available to source up to 30 Watts each. An external power supply is required. The system is designed to be completely transparent with auto-negotiation features which automatically configure the unit for the correct speed (10/100 Base-TX). Auto MDI/MDIX operation eliminates the potential need for crossover cables. Diagnostic indicators provide a quick visual indication of system status.
Features
- Complete Fiber Optic to Twisted Pair Media Interface
- Auto MDI / MDIX Detection
- Link and Activity Indicators for UTP and Fiber Ports
- SFP Optical and Copper Plug-ins Available
- 10/100Base-TX Speed On Copper Ports
Downloads
MX-6p-PoE-2HP-DIN-Specsheet
The American Fibertek MX-6p-PoE-HP-DIN transmits and receives (4) copper 10/100 Base-TX Ethernet signals at the RJ45 ports and (2) optical 1000 Base-X over 1 or 2 optical fibers. The system is comprised of two or more units forming communication links. The MX-6p-PoE-HP Series also sources up to 60 Watts of power to an Ethernet-powered device (PD) for up to 2 RJ45 ports. The power is carried over all 4 pairs of the Ethernet cable. However, it is required that the PD have independent discovery and classification interfaces for both the data pair and the spare pair of the Ethernet cable. If only a single RJ45 port requires 60 Watts, 2 of the other RJ45 ports are available to source up to 30 Watts each. An external power supply is required. The system is designed to be completely transparent with auto-negotiation features which automatically configure the unit for the correct speed (10/100 Base-TX). Auto MDI/MDIX operation eliminates the potential need for crossover cables. Diagnostic indicators provide a quick visual indication of system status.
Features
- Complete Fiber Optic to Twisted Pair Media Interface
- Auto MDI / MDIX Detection
- Link and Activity Indicators for UTP and Fiber Ports
- SFP Optical and Copper Plug-ins Available
- 10/100Base-TX Speed On Copper Ports
Downloads
MX-6p-PoE-2HP-DIN-Specsheet
