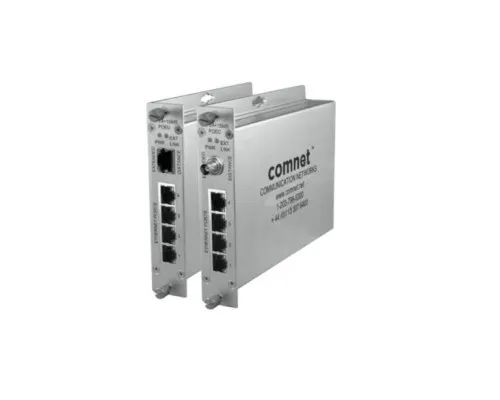

4 Port 10/100 Mbps Ethernet Self-Managed Switch, With Coaxial Copperline Uplink Port. The ComNet CopperLine CLFE4+1SMS is a five-port Ethernet switch with uplink management functionality and provides 4 copper ports operating at 10/100Mbps and is designed to combine four electrical ports into a single electrical Cat5, UTP, or Coax CopperLine port that forwards this data to the next network device. There is no programming required to use this product. The ComNet CLFE4+1SMS comes pre-programmed, preventing network video flooding with DIP switch selection of the fifth electrical port as uplink or as an unmanaged switch. Ports 1–4 of the CLFE4+1SMSPOE can supply up to thirty (30) watts of Power over Ethernet (PoE) and incorporate PoE+ features based on the IEEE 802.3at standard. It is "Plug-and-Play".
- No Programming Required
- 10/100 Mbps Ethernet: 4 × 10/100 BASE-T/TX electrical ports with optional PoE+, 1 × 10/1000Mbps CopperLine electrical uplink
- Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
- Pre-programmed Port for uplink
- Full 10/100 Mbps Bandwidth
- Supports Multicast, Unicast and Jumbo Frame
- Automatic MDI/MDI-X crossover
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.
- Power and Activity status LED indicators
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use - ComFit, or can be DIN-Rail mounted with optional kit
- IEEE 802.3 compliant
