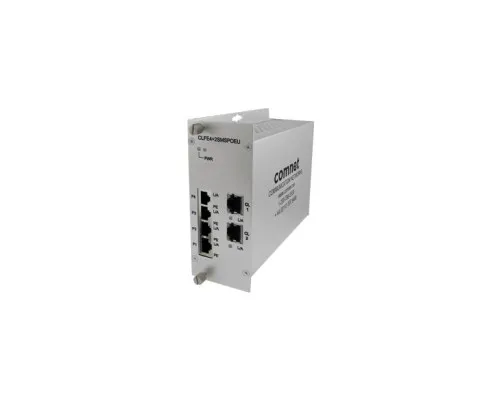

10/100Tx Drop/Insert/Repeat 4Tx/2Ex Self-Managed Ethernet Switch With PoE, Coax Model. The ComNet CLFE4+2SMSPOEC is a six-port Ethernet switch with add/drop/repeat functionality and provides 4 copper ports operating at 10/100Mbps and is designed to combine four electrical ports along with the incoming Cat5, UTP or Coax CopperLine extension port into a further CopperLine extension port that forwards this data to the next CopperLine network device. There is no programming required to use this product. Ports 1–4 of the CLFE4+2SMSPOEC can supply up to thirty (30) watts of Power over Ethernet (PoE) and incorporate PoE+ features based on the IEEE 802.3at standard. It is "Plug-and-Play".
- 10/100 Mbps Ethernet – 4 × 10/100Mbps RJ-45 Ports
- Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
- Extended distance ports are switch-selectable for 10 Mbps or 100 Mbps data rate, 1 pair or 4 pair in UTP mode
- IEEE802.3at PoE+ 30W
- Automatic MDI/MDI-X crossover
- Full 10/100 Mbps Bandwidth
- Supports Multicast, Unicast
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
- Extended distance over UTP or Coaxial Cable
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use - ComFit
- LED status indicators confirm operating status
- IEEE 802.3 compliant
– 2 × 10/100Mbps UTP/Coax Extended Distance Ports
Downloads
10/100Tx Drop/Insert/Repeat 4Tx/2Ex Self-Managed Ethernet Switch With PoE, Coax Model. The ComNet CLFE4+2SMSPOEC is a six-port Ethernet switch with add/drop/repeat functionality and provides 4 copper ports operating at 10/100Mbps and is designed to combine four electrical ports along with the incoming Cat5, UTP or Coax CopperLine extension port into a further CopperLine extension port that forwards this data to the next CopperLine network device. There is no programming required to use this product. Ports 1–4 of the CLFE4+2SMSPOEC can supply up to thirty (30) watts of Power over Ethernet (PoE) and incorporate PoE+ features based on the IEEE 802.3at standard. It is "Plug-and-Play".
- 10/100 Mbps Ethernet – 4 × 10/100Mbps RJ-45 Ports
- Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
- Extended distance ports are switch-selectable for 10 Mbps or 100 Mbps data rate, 1 pair or 4 pair in UTP mode
- IEEE802.3at PoE+ 30W
- Automatic MDI/MDI-X crossover
- Full 10/100 Mbps Bandwidth
- Supports Multicast, Unicast
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
- Extended distance over UTP or Coaxial Cable
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use - ComFit
- LED status indicators confirm operating status
- IEEE 802.3 compliant
– 2 × 10/100Mbps UTP/Coax Extended Distance Ports
