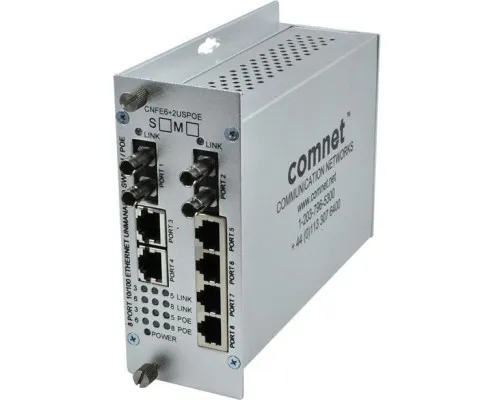

Comnet CNFE6+2USPOE-M 8 Port 10/100 Mbps Ethernet Self-Managed Switch

The CNFE6+2USPOE-M provides 8 Ethernet ports operating at 10/100Mbps and is designed to combine six electrical ports into a second optical port that forwards this data to the next CNFE6+2USPOE. The optical ports are designed to forward the data from the six electrical ports to the next switch, to a PC, or another Ethernet connection. In addition, the electrical ports can supply up to thirty (30) watts of power (“Power Over Ethernet”) to remote Ethernet devices. This product uses ST optical connections and can be supplied to operate over Multimode optical fiber. There is no programming required to use this product. The sixth (6th) electrical port can be used to monitor the data flow from the optical port to permit “local” observation and diagnostics of the equipment.

• No Programming Required
• 10/100 Mbps Ethernet
• 10/100 BASE-T/TX electrical port
• 100 BASE-FX optical port
• Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
• Optical port supports 100 Mbps full duplex data
• IEEE802.3af Class 1 – 3 Power over Ethernet (PoE) 30W
• Automatic MDI/MDI-X crossover
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
• Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
• No in-field optical adjustments required
• Power, Activity and Port PoE status LED indicators
• Hot-swappable rack modules
• The ComNet CNFE6+2USPOE may be either wall mounted, rack mounted (“ComFit” packaging) or DIN-rail mounted with the use of the ComNet DINBKT1 adapter
• IEEE 802.3 compliant
