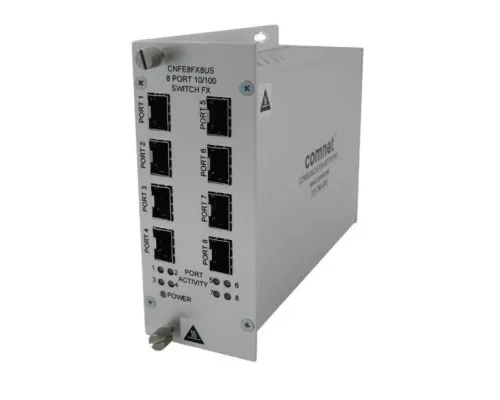

Comnet CNFE8FX8US 8-Port 100 Mbps Ethernet Unmanaged Switch; 8 SFP Optical.
The ComNet(tm) CNFE8US Series Ethernet 8 port unmanaged switch is designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP options or 10/100 Mbps data over CAT5E/6 electrical cable. This unit integrates eight independent 10/100 Mbps channels in a single package. The CNFE8FX4TX4US and CNFE8FX8US require the ordering of sold-separately interchangeable SFP modules for fiber type, distance and connectors. All electrical interfaces will Auto-Negotiate to 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interfaces operate at a 100 Mbps Ethernet rate. The CNFE8US Series models are environmentally hardened to operate in demanding environments. LED indicators are provided for confirming equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
Features & Benefits
- 100 BASE-FX optical port
- Optical port supports 100 Mbps full duplex data
- Uses interchangeable SFP for fiber type, distance and connector*
- Voltage transient protection on all power and signal input/output lines
- No in-field optical adjustments required
- Power, Activity and Port status LED indicators
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use -- ComFit
- IEEE 802.3 compliant
- LIMITED LIFETIME WARRANTY
Similar Switches
- CNFE8FX4TX4US 8 Port 10/100 Mbps Ethernet Unmanaged Switch; 4 TX, 4 FX
- CNFE8TX8US 8 Port 10/100 Mbps Ethernet Unmanaged Switch; 8 TX
Card Cages
- ComNet C1US Rack Mount Card Cage with Power Supply
- ComNet C2US Rack Mount Card Cage with Redundant Power
*Note: SFP Modules Sold Separately
Downloads
Comnet CNFE8FX8US 8-Port 100 Mbps Ethernet Unmanaged Switch; 8 SFP Optical.
The ComNet(tm) CNFE8US Series Ethernet 8 port unmanaged switch is designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP options or 10/100 Mbps data over CAT5E/6 electrical cable. This unit integrates eight independent 10/100 Mbps channels in a single package. The CNFE8FX4TX4US and CNFE8FX8US require the ordering of sold-separately interchangeable SFP modules for fiber type, distance and connectors. All electrical interfaces will Auto-Negotiate to 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interfaces operate at a 100 Mbps Ethernet rate. The CNFE8US Series models are environmentally hardened to operate in demanding environments. LED indicators are provided for confirming equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
Features & Benefits
- 100 BASE-FX optical port
- Optical port supports 100 Mbps full duplex data
- Uses interchangeable SFP for fiber type, distance and connector*
- Voltage transient protection on all power and signal input/output lines
- No in-field optical adjustments required
- Power, Activity and Port status LED indicators
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use -- ComFit
- IEEE 802.3 compliant
- LIMITED LIFETIME WARRANTY
Similar Switches
- CNFE8FX4TX4US 8 Port 10/100 Mbps Ethernet Unmanaged Switch; 4 TX, 4 FX
- CNFE8TX8US 8 Port 10/100 Mbps Ethernet Unmanaged Switch; 8 TX
Card Cages
- ComNet C1US Rack Mount Card Cage with Power Supply
- ComNet C2US Rack Mount Card Cage with Redundant Power
*Note: SFP Modules Sold Separately
