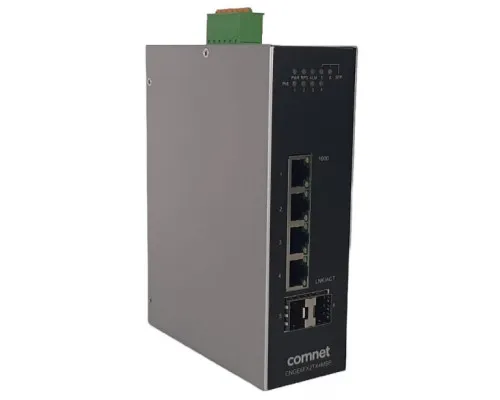

CNGE6FX2TX4MSP managed industrial switch is a Power Source Equipment (PSE) device engineered with rugged hardware to meet the high reliability requirements of Industrial or Outdoor PoE applications. Built in a well-protected IP30 aluminium housing, the switch withstands wide operating temperatures ranging from -40°C to 75°C and operates consistently even in harsh industrial environments. The CNGE6FX2TX4MSP supports QoS, IGMP snooping, SFP DDMI, PoE and other device management features to fulfill the needs of high performance managed surveillance networks. PoE+ function on 4-10/100/1000 copper ports of the CNGE6FX2TX4MSP complies with IEEE 802.3at standards and allows them to supply up to 30W per port for network attached powered devices such as WLAN Access Points, VoIP phones and IP surveillance cameras. Two gigabit fiber slots can be configured as dual fiber ring ports to quickly recover network failures and provide an easy way to establish redundant gigabit network. Thus, CNGE6FX2TX4MSP ensures a reliable and highly available managed industrial networks while delivering all the benefits of PoE power.
Features
Robust Performance and Protection
Well-protected in an IP30 aluminium casing, the switch provides high level of immunity against EMI and EMS found in industrial environments. Along with those, the CNGE6FX2TX4MSP is built with various protection features such as ESD Protection, Surge Protection, Over Current Protection, Reverse Polarity Protection and Short Circuit Protection to ensure continuous operation of mission-critical applications even in unstable power conditions.
High-Power Budget for PoE Network Devices
To fulfill the growing demand of high-bandwidth, high-power PoE+ for network applications and eliminating the cost of electrical cabling and circuits, the CNGE6FX2TX4MSP is designed under IEEE 802.3at standard PoE plus. With 120W PoE power budget capability for the whole system, the switch allows simple “plug and play” PoE for various types of high power consuming PoE devices. This makes the CNGE6FX2TX4MSP a very convenient solution for applications far away from power outlets satisfying PoE extension applications in much longer distances.
Innovative PoE+ for Powered Devices
The CNGE6FX2TX4MSP is designed with intelligent PoE+ features to utilize power more efficiently. With user-configurable power budget limit feature, the switch limits power output to devices to ensure that power consumption does not exceed user defined parameters. And to monitor real-time status of PDs, the switch sends alive-checking packets to PDs. This reduces management burden and increases system reliability. Using power scheduling mechanism of the switch, administrators can set power on each port to a desired hourly/weekly schedule and can enable or disable the power output to these devices accordingly.
Downloads
CNGE6FX2TX4MSP-Specsheet
CNGE6FX2TX4MSP-Installation-Manual
