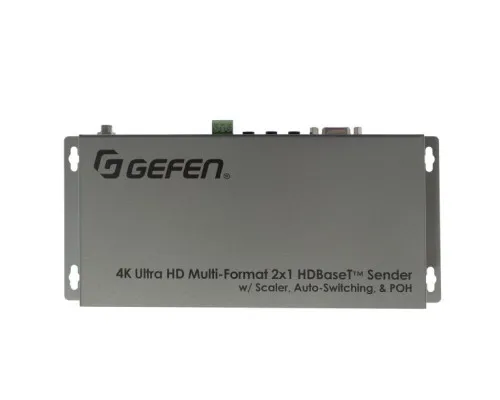

The Gefen EXT-UHDV-HBTLS-TX is a high-performance solution in compact easy-to-install enclosure for switching 4K Ultra HD HDMI and VGA inputs, extending them up to 70 meters (230 feet) at 1080p 40 (130 4K, over single CAT-5e cable. between the can be set Automatic or done manually via front panel button RS-232. Its input supports 18 Gbps of data 600 MHz TMDS Clock frequency, accepting full spec 2.0 (3860 x 2160) Cinema-DCI (4096 2160), 60 Hz 4:4:4 with HDCP 2.2 1.4. HDBaseT extension system 10.2 throughput 300 resolution/timing 30 4:4:4. It uses Gefen’s implementation technology enhancements including Advanced EDID Management. Highest performance multichannel digital audio 7.1 channels LPCM HBR (High Bit Rate) formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X, DTS-HD Master are passed through from output.
Features
- HDMI Gbps: (3840 Hz, 4:4:4
- HDBaseT Gbps
- Automatic VGA
- Manual RS-232
- VGA scaling 1920 1200 picture adjustments
- Extend HDMI, analog audio, RS-232 CAT-5e:
- 4K 2160 @ 4:4:4), 130 feet/40 (8-bit color)
- 4K 24 color)
- 1080p (60 Hz) WUXGA (1920×1200 Hz), 230 feet/70 (up 12-bit Deep Color)
- HDMI Features Supported:
- HDMI 2.0
- HDCP 1.4
- 12-bit Color (at 1080p)
- LPCM 7.1, pass-through
- 3DTV pass-through
- CEC pass-through
- Lip Sync pass-through
- Analog L/R VGA
- RS-232 control switching, scaler, management functions
