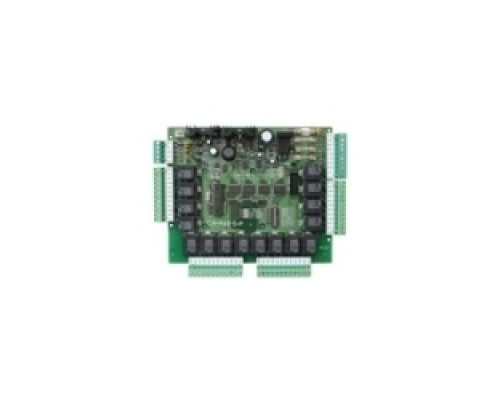

CDVI CA-A480-A 3662211009240 16-Floor Elevator Controller

Applications

SAP, ICAR and Biometric Integration

Features

• 16 Form C floor control relays (15A/28VDC, N.C./N.O.)
• 1 Fire control input + 1 Tamper input
• Control up to 64 floors and 2 elevator cabs
• Destination reporting (requires CA-A482-P)
• E-Bus connectivity to the CT-V900-A up to 1220m (4000ft)
• Backup bary with selectable battery charge current
• On-board 12VDC power supply
• Fully supervised (tamper, low battery and AC failure) with LED display
• Up to 8 CA-A480-A controller per CT-V900-A controller

Specification Description

Input Specifications

Fire alarm: 1

Tamper: 1



Output Specifications

Relay outputs: 16 form C relays rated at 20A/16 V DC (10A/250 V AC ), N.C./N.O
