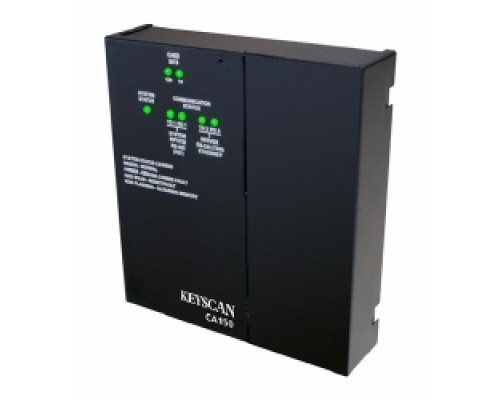

KEYSCAN CA150 Single Door PoE Equipped Access Control Panel

Features

• Equipped with a Power-over-Ethernet ready (PoE) TCP/IP module, which is designed to reduce installation time, lengthy wiring runs, and power requirements, the CA150 is the ideal solution for that single door at the far end of a building or those applications with only one critical door to be secured
• The complete family of Keyscan access control units includes a 1, 2, 4, 8 and Elevator Floor Access Control panels tha can be mixed and matched to optimize system design and installation
• Uses network appliance-based architecture
• Supports 1 door (in and out reader capability) equipped with 1 door relay and 1 auxiliary relay (wet/dry)
• Comes with 2 heavy-duty powered relays, wet or dry, (providing 500mA at 12 V DC), designed to power reader, door strike, request to exit (PIR) and many other auxiliary devices
• Keyscan Access Control Units can be mixed and matched to optimize system design and installation
• Easily configurable reader settings supporting Wiegand protocols
• Dual multi-threaded on-board processors ensuring full panel operation even during system downloads
• System status LEDs for diagnostics and troubleshooting
• Communication options: TCP/IP, LAN/WAN, Internet
