Features

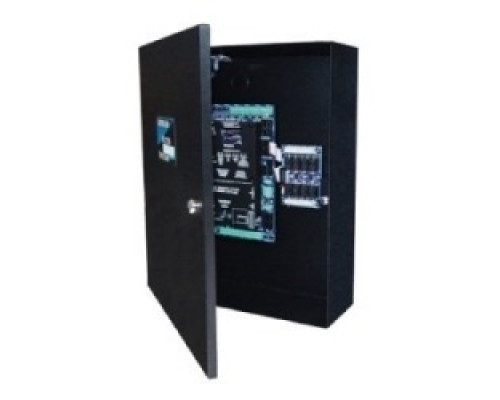

- The complete family of Keyscan access control units includes a 1, 2, 4, 8 and Elevator Floor Access Control panels tha can be mixed and matched to optimize system design and installation
- Uses network appliance-based architecture
- Easily configurable reader settings supporting Wiegand protocols
- Dual multi-threaded on-board processors ensure full panel operation even during system downloads
- System status LEDs for diagnostics and troubleshooting
- Communication options: TCP/IP, LAN/WAN, Internet, RS485
- mes with 1 - CA4500B PC109X ACU Main Board, 1 - OCB8 (PC110X) Relay Board, 1 - DPS-15 Power Supply and Black Metal Enclosure
- Requires 2 - 16 V AC 37 or 40 VA Transformers and 1 - 12 V 7Ah Battery
- Card Capacity 32,000 Cards, 4 Card Readers and/or Keypads, 4 Auxiliary Outputs and 16 Auxiliary Inputs
Technical
Environmental
INDOOR
Input Voltage
16.5 VAC
Interface
RS232
Mounting
SURFACE MOUNT NO ELEC BOX
Number of Readers
4
Number of Users
MORE THAN 2000
Output Voltage
12 VOLTS DC
Product Type
IP HARDWIRED CONTROLLER
Sales Category
ELECTRIC SYSTEM CONTROLLER
