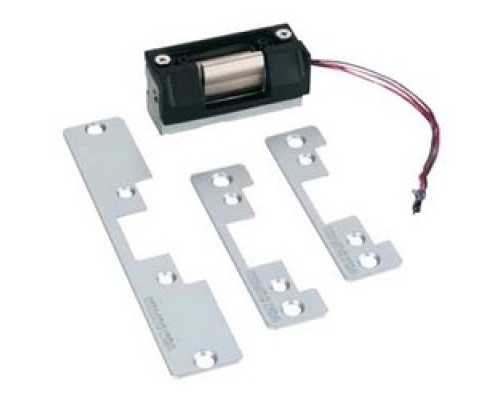

Model:
5100-3FP 689, CS245976SKU:
5100-3FP 689, CS245976Availability:
In Stockdocuments:
Spec Sheet
Request Quote
Features
- Designed for cylindrical applications
- Capable of 12 in-field configurations
- Three faceplates standard in every box
- Field selectable 12/24 voltage
- Non-handed, internal solenoid design
- Field selectable power failure mode (fail-safe/fail-secure)
- Adjuse keeper improves fit on tight door preps
- Options include 12 and 24 VAC to VDC rectifier kits
- Available in three finishes to suite with existing hardware
- Suitable for interior and exterior doors
- UL 1034 listed for burglary-resistant electric door stres
- Door Electric Strike, Medium Duty, 1-Door, 24 VDC, 1300 Lb Static Load, Aluminum, For Cylindrical Lockset
Tech Info
UL 1034, ANSI/BHMA 156.5
Technical
ANSI Grade
GRADE 1
Finish
US28 ALUMINUM PAINTED
Frame Material
ALUMINUM, HOLLOW METAL, OR WOOD
Locking State
SELECTABLE FS OR FSE
Max Latch Length - Inch
MAXIMUM 5/8 INCH THROW
Mounting
FOR SURFACE MT INSTALLATIONS
Product Type
FOR USE WITH CYLINDRICAL LOCK
Pull Strength - Lbs
1000 - 1500 LBS.
Sales Category
ELECTRIC STRIKE
UL
UL BURGLARY RESISTANCE
Voltage and Duty CONT
SELECTABLE 12/24V DC
Voltage and Duty INT
SELECTABLE 12/24V AC/DC INT
Warranty
5 YEAR LIMITED
