Features
- Designed for use with rim exit devices
- Heavy-duty stainless steel construction in BHMA 630 satin finish
- Surface mounted - requires no alteration or cutting to existing frame
- Field selectable voltage 12VDC or 24VDC
- Plug-in voltage connectors included r ease of installation and removal during strike servicing
- Non-handed design provides greater flexibility
- Suitable for interior and exterior doors
- UL 10C 3-hour fire-rated (fail secure only)
- UL 1034 listed for burglary-resistant electric door strikesL 294 listed for access control system
- CSFM California State Fire Marshal listed
- Dynamic strength 70 ft-lbs
- Endurance 2,000,000 cycles

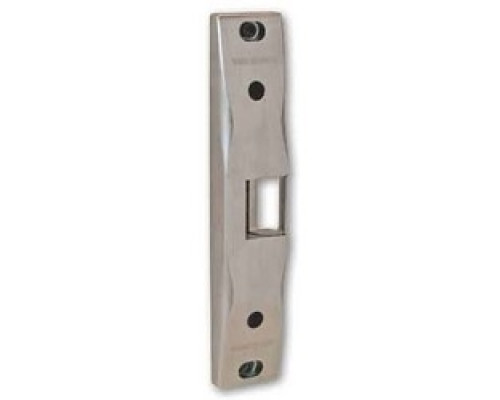

- Door Electric Strike, Heavy Duty, 1-Door, 12/24 VDC, 1300 Lb Static Load, Satin Stainless Steel, For Rim Exit Devi
Tech Info
UL 1034/10C
Technical
Finish
US32D SATIN STAINLESS STEEL
Frame Material
ALUMINUM, HOLLOW METAL, OR WOOD
Locking State
FAIL-SECURE (POWER TO UNLOCK)
Max Latch Length - Inch
MAXIMUM 3/4 INCH THROW
Mounting
FOR SURFACE MT INSTALLATIONS
Product Type
FOR USE WITH SURFACE MOUNTED LOCKS
Sales Category
ELECTRIC STRIKE
UL
UL 3-HOUR FIRE AND BURGLARY RESISTANCE
Voltage and Duty CONT
SELECTABLE 12/24V DC
Voltage and Duty INT
SELECTABLE 12/24V AC/DC INT
Warranty
5 YEAR LIMITED
