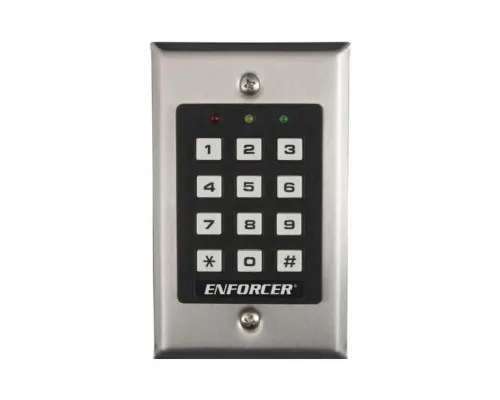

Seco-Larm SK-1011-SDQ Indoor Stand-Alone Keypad

Indoor Stand-Alone Keypad with 1000 users and one 1A relay output. Includes quick code, wrong-code lockout, smart egress input, three LEDs, built-in buzzer, and back box.

• Up to 1,000 possible user codes (4-8 digits)
• Output: Form C relay, 1A@30VDC max
• Output can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Up to 50 (01~50) possible temporary visitor codes, which can be programmed for onetime or limited-time use (1~99 hours)
• Durable and attractive stainless-steel faceplate
• Programmable delayed egress input lets users exit the premises without keying in the code
• EEPROM Memory protects programmed information in case of power loss
• 12~24 VDC/VAC Auto-adjusting operation
• Tamper output: N.C. Dry contact, 50mA@24VDC max
• Mounts to a standard single-gang back box (surface-mount back box included)
• Programmable wrong-code lockout
• Real-time clock to auto-disable access at specific times
• All features are programmed directly from the keypad: No need for an external programmer

Downloads
