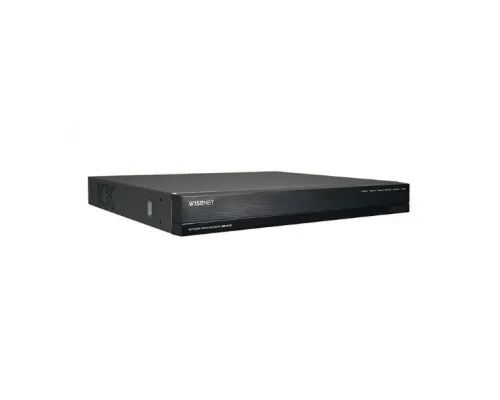

Hanwha Vision SPE-1610 16 Channel Network Video Encoder

Condition: New Brand: Hanwha Vision NDAA Compliance: No Alarm I/O: 2/2 Features: Privacy Masking No Of Channels: 16 Channel Audio Inputs: 4-Channel Line Input Resolution: 2240 X 1680 Compression Method: H.264, MJPEG, MPEG-4 Protocols: 802.1x, ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IP, IPv4, IPv6, MIB-II), NTP, ONVIF, Pelco C, P, Pelco-D, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP (V1, SNMPv1/v2c/v3(MIB-II), SSL/TLS, TCP/IP, UDP, UDP/IP, UPnP Ethernet: 1 RJ-45 (10/100/1000 BASE-T) Video In: 16CH BNC 1.0 Vpp / 75Ω composite NTSC/PAL Operating System: -10°C ~ +50°C (+14°F +122°F) COM Ports: RS-485

The SPE-1610 from Vision is an encoder, H.264/MJPEG, 30fps @ 2MP or lower and 15 fps 4MP, AHD/CVI/TVI/CVBS compatible, RS-485/422 Interface, C when using CVBS ACP up-coax protocol AHD, ONVIF support, HDMI output, I/O 16/4, Audio in/out 4/1, 12VDC.

Features

• Max. 4MP resolution
• Max. 15fps@4MP, 30fps@1080p
• MJPEG codec support
• Multiple streaming (up to 3 pro les per CH)
• 10/100/1000 Base-T

Downloads

  SPE-1610-Specsheet
