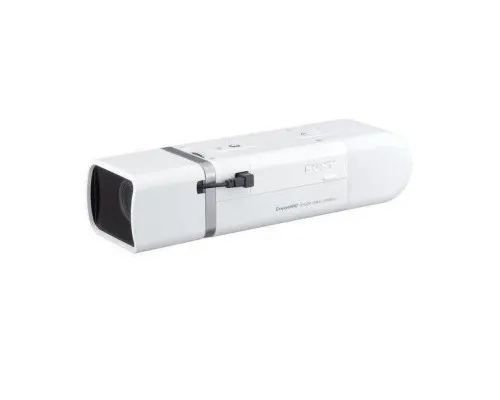

Sony SSC-DC83 Fixed Color Camera, 1/2-inch CCD with 480 TVL

Condition: New Features: Privacy Masking NDAA Compliance: No Brand: Sony Technology: Analog SD / 960H Resolution: 480 - 540 Image Sensor: 1/2-inch CCD Signal Format: NTSC (Domestic) Voltage: 12 VDC, 24 VAC Housing Color: White Video Connection: BNC Special Features: On-screen Menu, Masking, Video Motion Detection Camera Type: Box Environment: Indoor Lens: Not Included Imaging System: Color Only Video Output: Composite Video- BNC (x 2 output)S-Video- 4-Pin 1 output)Power Input- Bare Wire Leads 2) Signal NTSC Camera Signal: Analog Lens Included Durability: Indoor Image Pixels Total: 380,000 Pixels Image Device: CCD Dimensions (W x H): 2.75 2.24 10.23 Inches (70 57 260 mm) Measured with Rear Cover Infrared Distance: Non Infrared Sensor Option: 1/2' CCD S/N Ratio: 50 dB Power Consumption: 27 Watts Operating Temperature: 14° to 122° F (-10° 50° C) Minimum Scene Illumination: 0.4 Lux @ f/1.2 + IRE Gain Up Mount Bracket Required Privacy Masking: Yes Auto Control: Yes Automatic White Balance: Yes Back Light Compensation: Yes

The SSCDC83 is a Super Sensitive camera. This camera offers Sony technologies and features that greatly enhance the specifiers or installers options for difficult environments.

• 1/2' type State-of-the-Art Exwave HAD(tm) technology CCD
• Super sensitivity of F1.2
• Automatic balance (ATW/ATW PRO)
• Auto-iris lens controlled by signal DC power supply
• BLC (Backlight Compensation) through center measurement/spot measurement.
• The Variable gamma allowing unit accommodate various types environment (4 patterns OFF)
• Private mask function hiding an area should be displayed on screen
• Activity detection detect change in area
• Three years Warranty except which warranted one year

Downloads

SSC-DC80_DC83 Data Sheet (Size: 545.5 KB) Operating Instructions 273.2
