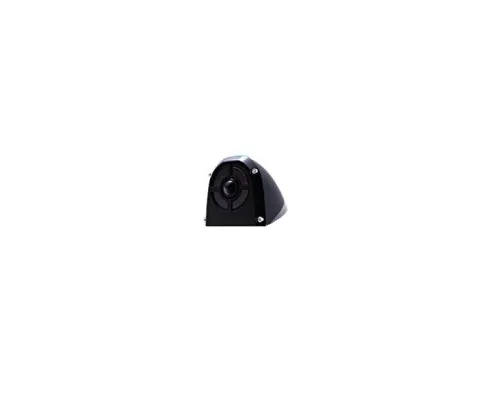

Weldex WDRV-3415C 1/3" Color D/N IR Weatherproof Side View Camera

Condition: New Features: Auto Gain Control, Day/Night, Weather Resistant NDAA Compliance: No Brand: Weldex Technology: Analog SD / 960H Resolution: 600 - 690 Image Sensor: 1/3-inch CCD Signal Format: NTSC (Domestic) Voltage: 12 VDC Housing Color: Black Video Connection: BNC Camera Type: Wedge Environment: Outdoor (IP65+) Imaging System: Day/Night (IR) Video Output: 1.0 Vp-p 75Ohm composite (BNC connector) Camera Signal: Analog Lens Fixed Durability: Resistant Scanning 2-1 interlaced Image Device: 1/3” Super HAD?SONY CCD Infrared Distance: 0~60 Feet Sensor Option: 1/3" CCD Image Pixels-Effective: 768(H) x 494(V) 380K pixels S/N Ratio: 48dB Power Consumption: 120mA (LED on- 250mA) Operating Temperature: -30?C ~ +80?C Minimum Scene Illumination: 0.2 Lux at F1.2 Auto Control: Yes Day/Night: Yes

The WDRV-3415C from Weldex is a color infra-red weatherproof side view camera with fixed lens.

• Rugged heavy duty housing
• 620TV lines of resolution
• Day night infra- red illumination
• Built-in audio

Downloads

WDRV-3415C Data sheet (Size: 571.5 KB)
