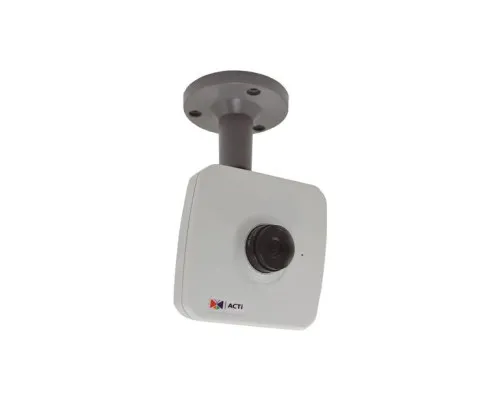

ACTi E11A 1 Megapixel Cube Camera with Basic WDR - Fixed Lens

Condition: New Features: Wide Dynamic Range Brand: ACTi NDAA Compliance: No S/N Ratio: 52 dB Protocols: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour Privacy Zone: 4 configurable regions Power Consumption: PoE Class 2 (IEEE802.3af) / 3.15 W Operating Temperature: -10°C ~ 45°C (14°F 113°F) Operating Humidity: 10% 85% RH Minimum Scene Illumination: Color- 0.1 lux at F1.8 (30 IRE, 2400 °K) Lens Size: 4.2mm Camera Signal: Network IP Lens Type: Fixed Angle of View: 53.8° Motion Detection Tracking: 3 regions Automatic White Balance: automatic, hold and manual Infrared Distance: Non Infrared Resolution: 1 Megapixel Voltage: PoE Compression Method: M-JPEG Connection Wired Image Pixels-Effective: 1280 (H) x 800 (V) (1.02 MP) Image Device: 1/4" Progressive Scan CMOS Electronic Shutter: 1/5 1/2,000 sec (manual mode); 1/10,000 (auto mode) Dimensions (W H): 96 mm 45.07 (3.8" 3.8" 1.8") Durability: Indoor Mount Wall Audio: Yes Motion Yes Privacy Masking: Yes Wide Range: Yes Mirror: Yes ONVIF: Yes Auto Gain Control: Yes Day/Night: Yes Digital Noise Reduction: Yes Automatic Yes Flickerless: Yes

1MP Cube with Basic WDR, Fixed lens, f4.2mm/F1.8 (HOV:53.8°), H.264, 720p/30fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE.

• 1 Megapixel 720p
• Fixed Lens f4.2mm F1.8
• Basic WDR (74 dB)
• 30 fps 720

Downloads

E11A Data sheet (Size: 582.7 KB)
