Model:
SID-MM1SKU:
SID-MM1Availability:
In Stock
$320.60
Condition: New
Brand: ENS
Intercom Type: Video/Audio Intercom
Module- connecting: 1
I/O input: 4
Debug: 1
Relay: 2 (30 V, 1 A)
Module- connecting: 1
I/O input: 4
Debug: 1
Relay: 2 (30 V, 1 A)

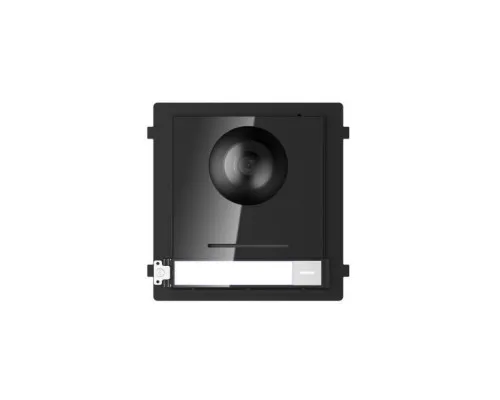

The SID-MM1 from ENS is a video intercom module door station.
Features
- 2 MP HD video intercom function
- Access control function
- Noise suppression and echo cancellation
- Low illumination
- Tampering alarm supported
- Fisheye camera with IR supplement light
- Supports sub-modules’ access (max. 8)
- Nametag customization
- Easy to and extend
System parameters
- Processor: Embedded MCU Processor
- Operation system: Embedded Linux operation system
- Operation method: Physical button
Video Parameters
- Camera: Low illumination 2 MP HD IR camera
- Video Compression Standard: H.264
- Resolution Mainstream : 1920 × 1080, Sub stream : 720 × 480
- BLC Supported
- DNR Supported
- WDR Supported
- Anti-flicker 50 Hz, 60 Hz
- Field of view Horizontal: 180° Vertical: 96°
Audio parameters
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker (More than 85 dB within 20 cm)
- Audio compression standard: G.711 U
- Audio compression Rate: 64 Kbps
- Audio quality Noise suppression and echo cancellation
- Light supplement mode: IR supplement
Network
- Ethernet: 10/100 Mbps self-adaptive Ethernet
- Network protocol: TCP/IP, RSTP
- Tampering alarm: 1
Interfaces
General
- Physical button: 1
- Power supply: 12 VDC/PoE (IEEE 802.3af)
- Power consumption: ≤ 10 W
- Working temperature: -40° C to +55° C(-40° F to 131° F)
- Working humidity: 10% to 95%
- Installation: Flush mounting, surface mounting
- Dimension: 98 mm × 99.8 mm × 43.9 mm (3.86' × 3.93' × 1.73')
Downloads
SID-MM1-Specsheet
SID-MM1-User-Manual
The SID-MM1 from ENS is a video intercom module door station.
Features
- 2 MP HD video intercom function
- Access control function
- Noise suppression and echo cancellation
- Low illumination
- Tampering alarm supported
- Fisheye camera with IR supplement light
- Supports sub-modules’ access (max. 8)
- Nametag customization
- Easy to and extend
System parameters
- Processor: Embedded MCU Processor
- Operation system: Embedded Linux operation system
- Operation method: Physical button
Video Parameters
- Camera: Low illumination 2 MP HD IR camera
- Video Compression Standard: H.264
- Resolution Mainstream : 1920 × 1080, Sub stream : 720 × 480
- BLC Supported
- DNR Supported
- WDR Supported
- Anti-flicker 50 Hz, 60 Hz
- Field of view Horizontal: 180° Vertical: 96°
Audio parameters
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker (More than 85 dB within 20 cm)
- Audio compression standard: G.711 U
- Audio compression Rate: 64 Kbps
- Audio quality Noise suppression and echo cancellation
- Light supplement mode: IR supplement
Network
- Ethernet: 10/100 Mbps self-adaptive Ethernet
- Network protocol: TCP/IP, RSTP
- Tampering alarm: 1
Interfaces
General
- Physical button: 1
- Power supply: 12 VDC/PoE (IEEE 802.3af)
- Power consumption: ≤ 10 W
- Working temperature: -40° C to +55° C(-40° F to 131° F)
- Working humidity: 10% to 95%
- Installation: Flush mounting, surface mounting
- Dimension: 98 mm × 99.8 mm × 43.9 mm (3.86' × 3.93' × 1.73')
Downloads
SID-MM1-Specsheet
SID-MM1-User-Manual
