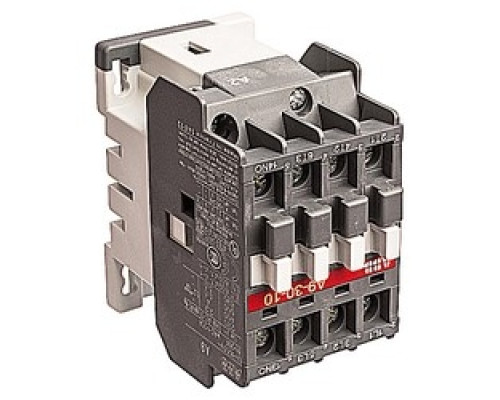

ABB A9-30-10-84 A9 Contactor, 3 NO Power, 1 NO Aux, 120 V AC

Applications

A-Line contactors are mainly used for controlling 3-phase motors and for controlling power circuits corresponding to their operating characteristics up to 690 and even 1000V AC. and 440 V DC.

Features

• Maximum UL/CSA horsepower ratings according to UL508 and CSA22.2 No. 14
• Includes NEMA sizes 00 - 3
• CE mark
• Compact space saving design
• Standard auxiliary contact configurations: A9 - A40 1 NO or 1 NC, A50 - A110 1 NO & 1 NC
• Contactor sizes A50 - A110 can be supplied without auxiliaries
• Additional auxiliary contact blocks are available
• D.C. ratings & D.C. control operation available
• Fast, snap-on DIN rail mounting
• Double break contact design
• Snap-on front mounted accessories include mechanical latch, pneumatic timer, and 1 & 4 pole auxiliary contact blocks
• Contactors ensure positive safety between their auxiliary contact blocks.
• Easy coil change
• Captive terminal screws
• NEMA, UL, IEC, CSA, VDE and most other international standards
• Touch safe design: All connection terminals are protected against accidental touch
• Terminals supplied open for ease of wiring
• Operates over an extended voltage range of 85% to 110% of rated control voltage
• Screwdriver guide holes
• UL File No: E39231 (A9 - A75); (AE9 - AE75); (AL9- AL40); (AF50 - AF75)
• UL File No: E36588 (A95 - A110);(AE95 - AE110); (AF145 - AF750)
• CSA File No: LR56745 (A9 - A75); (AE9 - AE75); (AF50 - AF75)
• CSA File No: LR19700 (A95 - A110); (AE95 - AE110); (AF145 - AF750)
• CSA approved for elevator service

Specification Description

Coil Voltage: 110 V AC At 50 Hz, 110 - 120 V AC At 60 Hz
Contact Configuration: 3NO (Main) 1NO (Auxiliary)
Wattage: 2.2 kW At 220/230/240 V, 4 kW At 380/400/415/440 V, 5.5 kW At 500/690 V
Connection: Screw Terminal
Size: 44 mm Width X 74 mm Height X mm Depth
Operating Temperature: Fitted With Thermal Overload Relay: -25 To +55 deg C, Without Thermal Overload Relay: -40 To +70 deg C
Tightening Torque: 9 in-lb
Motor Rating: 5 hp At 480 V
Maximum Breaking Capacity: 90 A At 690 V, 250 A At 440 V
Vage Rating: 690 V
Wire Size: 10 - 18 AWG (Main), 18 - 14 AWG (Auxiliary)
Endurance: Mechanical: 10 Million Cycles
Enclosure: IP20
Operating Current: 25 A At 40 deg C, 22 A At 55 deg C, 18 A At 70 deg C
Impulse Withstand Voltage: 8 kV
Number Of Pole
Environmental Conditions: Maximum Operating Altitude Permissible: 3000 m, Storage Temperature: -60 To +80 deg C
Insulation Voltage: 1000 V (IEC 60947-4-1), 600 V (UL/CSA)

Tech Info

UL Listed, CSA, CE, BV, CB, CCC, DNV, GL, GOST, LOVAG, LR, RINA, RMRS Certified, RoHS Compliant
